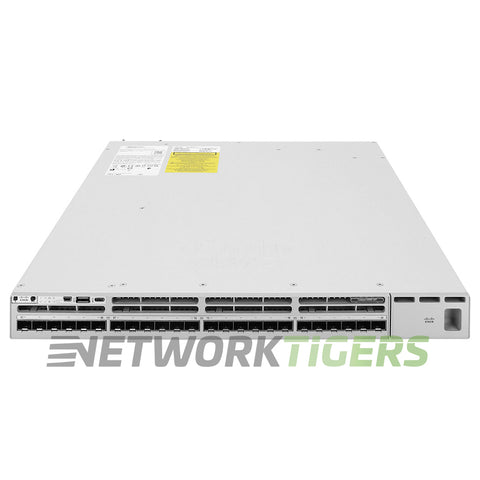

This NEW Cisco Catalyst C9300X-24Y-E (Network Essentials version) arrives in open box as a 24-port SFP28 switch with a modular uplink slot, for fiber aggregation and access closets that need 25G, 10G, or 1G ports.
- Platinum-rated 715W, no PoE: The 24Y has no PoE. Its default PWR-C1-715WAC-P is a Platinum-rated supply with a 715W rating.
- Modules for the uplink slot: Choose C9300X-NM-2C (2x 100G/40G), C9300X-NM-8M (8x 10G/1G Multigigabit), C9300X-NM-8Y (8x 25G/10G/1G), or C9300X-NM-4C (4x 100G/40G) for uplinks.
- Shared power across a stack: Stack up to eight switches at 1 Tbps, and use StackPower to share supplies across up to four of them, or eight with an XPS-2200.
- Swap fans, add a bay: The three N+1 fans (FAN-T2) are field-replaceable, and a second power supply bay is open for redundancy.
Compare: Want fewer ports? The NEW C9300X-12Y-E has 12 SFP28 ports. Need copper ports for desktops? The NEW C9300X-48TX-E has 48 Multigigabit data ports.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 24x 25 Gigabit Ethernet SFP28
- Management Ports : 1x USB 2.0,1x USB 3.0, 1x RJ45 Management
- Stacking Ports : 2x StackWise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately -
- Stacking Options : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and 9300 models | Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
- Stacking Cable Options : StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
- Module Slots : 1x Expansion Module Slot - Module Not Included
- Module Options : C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
- Switch Version : Network Essentials
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-715WAC-P PSU Included (Default) - 2x PSU Slots - 2nd PSU ordered separately
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P, PWR-C1-1900WAC-P
- Switching Capacity : 2,000 Gbps (3,000 Gbps w/ stacking)
- Forwarding Rate : 1488 Mpps (2232 Mpps w/ stacking)
- MAC Address Table Size : 32,000
- DRAM and Flash : 16GB DRAM, 16GB Flash
- Model Number : C9300X-24Y-E
- Part Number : C9300X-24Y-E
- Condition : New
- One (1) NEW Cisco C9300X-24Y-E Catalyst 9300X 24x 25GB SFP28 1x Exp Mod Slot Switch as described above
