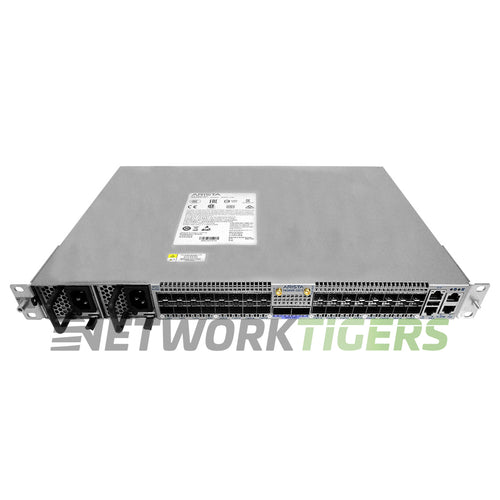

With 32 1/10G SFP+ ports, two 100G QSFP100 uplinks and a 3 GB packet buffer, the 7020SR-32C2 handles bursty 10G traffic in storage, media and leaf roles where shallow-buffer switches drop packets. Arista rates it at 1.04 Tbps and 300 Mpps, with latency from 3.8 microseconds.
Two 400W AC power supplies are installed in a 1+1 redundant pair. Arista lists PWR-400AC-BLUE (400W AC) and PWR-400-DC-BLUE (400W DC) as the spares for this front-to-back model. Cooling comes from two hot-swap FAN-7001C-F fan modules.
Airflow is front-to-back (port-side intake). A back-to-front version is also sold, so match all fans and power supplies to the airflow your rack needs. The switch mounts with the KIT-7021 accessory kit.
Management is through a 100/1000 port, an RJ-45 RS-232 console and USB, with 8 GB DRAM and 8 GB flash. The 1RU chassis weighs 14.4 lb and measures 17.3 x 13.6 x 1.71 in. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
A new DCS-7020SR-32C2-F is also available.
Check your rack depth, power feeds, and cold-aisle orientation before you order, since the airflow direction is set by the fans and power supplies installed.
This seller refurbished DCS-7020SR-32C2-F is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 32x 1/10G SFP+
- Uplink Ports : 2x 100G QSFP100
- Management Ports : 1x 100/1000 mgmt, 1x RS-232 console (RJ-45), 1x USB
- VLAN ID's : 4096
- CPU : Multi-core x86
- AirFlow Direction : front-to-back (port-side intake)
- Fan Module Options : FAN-7001C-F
- Power Supplies Included : 2x 400W AC (1+1)
- Power Supply Options : PWR-400AC-BLUE (400W AC), PWR-400-DC-BLUE (400W DC)
- PoE Budget : None
- Switching Capacity : 1.04 Tbps
- Forwarding Rate : 300 Mpps
- MAC Address Table Size : 256,000
- Latency : from 3.8 microseconds
- DRAM and Flash : 8 GB DRAM, 8 GB flash
- Model Number : DCS-7020SR-32C2-F
- Part Number : DCS-7020SR-32C2-F
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7020SR-32C2-F 32x 10GB SFP+ 2x 100GB QSFP F-R Airflow Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Fan Modules Not Included
- Transceiver Modules Not Included
- Power Supplies Not Included
- Rack Mount Rails Not Included
