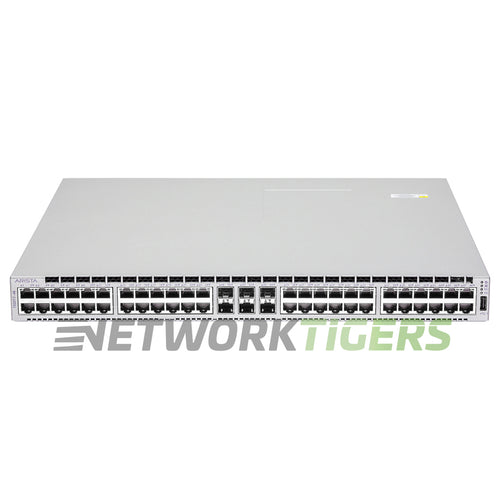

The 7020TRA-48 pairs 48 100/1000BASE-T ports and six 1/10G SFP+ uplinks with a 3 GB deep packet buffer, and adds AlgoMatch for more flexible traffic classification and filtering in hardware.
It switches 216 Gbps at 162 Mpps, with latency from 3.8 microseconds, and supports Accelerated sFlow. The control plane uses 8 GB DRAM and 4 GB flash. Management connections are a 100/1000 port, an RJ-45 RS-232 console and two USB ports.

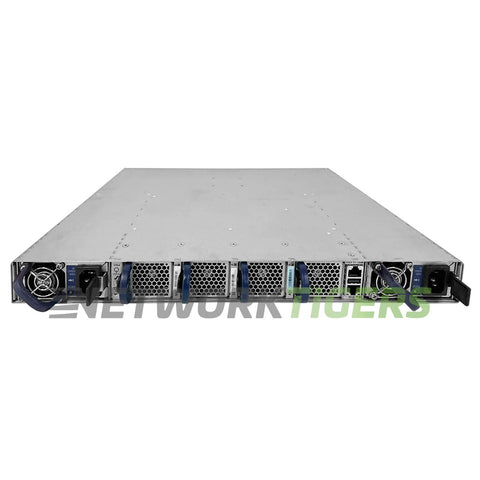

Two 500W AC supplies come installed in a 1+1 redundant pair. Spares are PWR-500AC-F (500W AC) and PWR-500-DC-F (500W DC). Four hot-swap FAN-7000-F fans in N+1 move air front-to-back (port-side intake). The back-to-front version is also available from Arista, so keep fans and supplies matched to one direction.

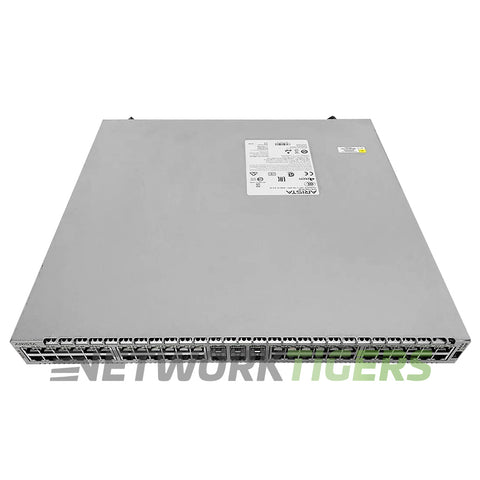

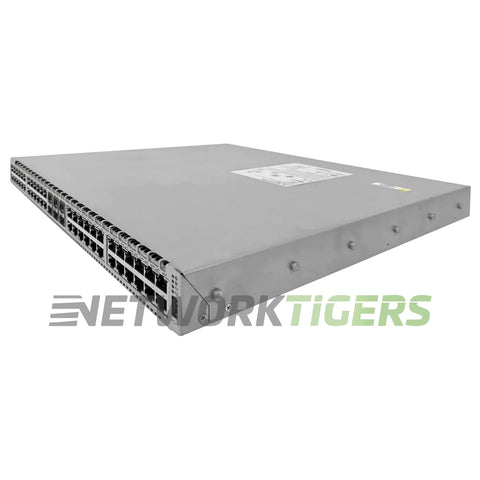

The 1RU chassis weighs 17 lb and measures 17.3 x 15.8 x 1.71 in. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Arista also sells the DCS-7020TRA-48-R with the opposite airflow. A new DCS-7020TRA-48-F is also available. Matching spares include the PWR-500AC-F power supply and the FAN-7000-F fan module.
This seller refurbished DCS-7020TRA-48-F is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 100/1000BASE-T
- Uplink Ports : 6x 1/10G SFP+
- Management Ports : 1x 100/1000 mgmt, 1x RS-232 console (RJ-45), 2x USB
- VLAN ID's : 4096
- CPU : Multi-core x86
- Packet Buffer : 3GB
- Switch Version : Arista EOS
- AirFlow Direction : front-to-back (port-side intake)
- Fan Module Options : FAN-7000-F
- Power Supplies Included : 2x 500W AC (1+1)
- Power Supply Options : PWR-500AC-F (500W AC), PWR-500-DC-F (500W DC)
- PoE Budget : None
- Switching Capacity : 216 Gbps
- Forwarding Rate : 162 Mpps
- MAC Address Table Size : 256,000
- Latency : from 3.8 microseconds
- DRAM and Flash : 8 GB DRAM, 4 GB flash
- Model Number : DCS-7020TRA-48-F
- Part Number : DCS-7020TRA-48-F
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7020TRA-48-F 7020R Series 48x 1GB RJ45 6x 10GB SFP+ F-R Air Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
