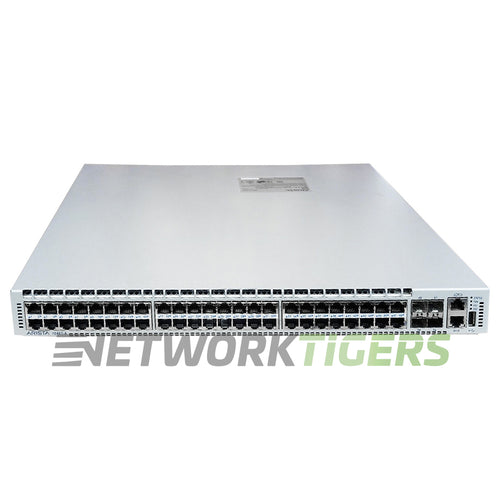

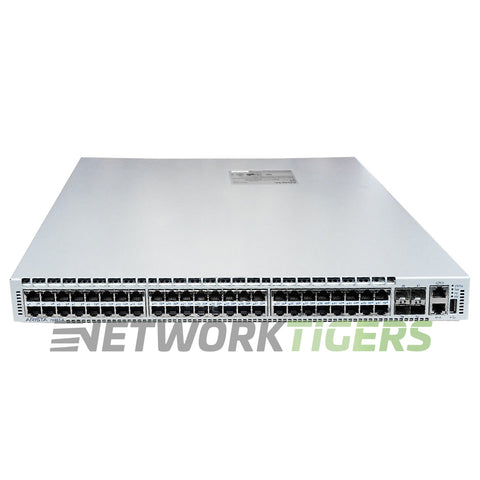

The 7048T-A is a 1RU top-of-rack switch with 48 100/1000BASE-T ports and four 1/10G SFP+ uplinks. Its 768 MB deep packet buffer helps it ride out bursts from storage and backup traffic without dropping frames, a common problem on shallow-buffer gigabit switches.
Performance is 176 Gbps and 132 Mpps with 3 microseconds of latency. The control plane carries 4 GB DRAM and 2 GB flash, managed through a 100/1000 port, an RJ-45 RS-232 console and USB. Arista lists power draw at 174W typical and 212W maximum.

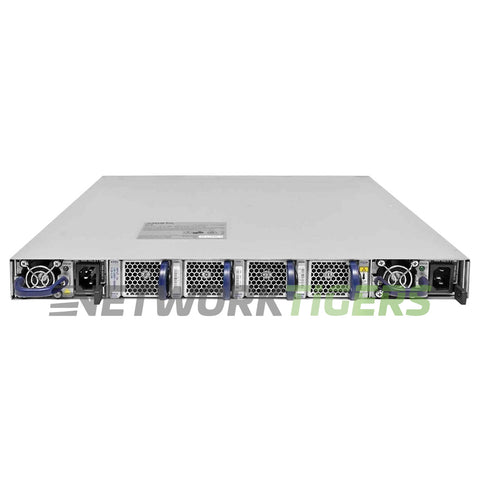

Two 460W AC power supplies are installed in a 1+1 redundant pair, with PWR-460AC-R as the spare. Four hot-swap FAN-7000-R fans in N+1 move air back-to-front (port-side exhaust). A front-to-back version also exists, so keep every fan and supply matched to the rack's airflow.
The switch measures 19 x 16 x 1.75 in and weighs 17 lb. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Arista also sells the DCS-7048T-A-F with the opposite airflow. A new DCS-7048T-A-R is also available. Matching spares include the PWR-460AC-R power supply and the FAN-7000-R fan module.
This seller refurbished DCS-7048T-A-R is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 100/1000BASE-T
- Uplink Ports : 4x 1/10G SFP+
- Management Ports : 1x 100/1000 mgmt, 1x RS-232 console (RJ-45), 1x USB
- IPv4 Routes : 14K
- IPv6 Routes : 4K
- CPU : Dual-core x86
- Packet Buffer : 768MB
- Switch Version : Arista EOS
- AirFlow Direction : back-to-front (port-side exhaust)
- Fan Module Options : FAN-7000-R
- Power Supplies Included : 2x 460W AC (1+1)
- Power Supply Options : PWR-460AC-R (460W AC)
- PoE Budget : None
- Switching Capacity : 176 Gbps
- Forwarding Rate : 132 Mpps
- VLAN ID's : 4094
- Latency : 3 microseconds
- DRAM and Flash : 4 GB DRAM, 2 GB flash
- Model Number : DCS-7048T-A-R
- Part Number : DCS-7048T-A-R
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista DCS-7048T-A-R 48x 1GB RJ45 4x 10GB SFP+ Back-to-Front Airflow Switch as described above
- One (1) Power Cord Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
