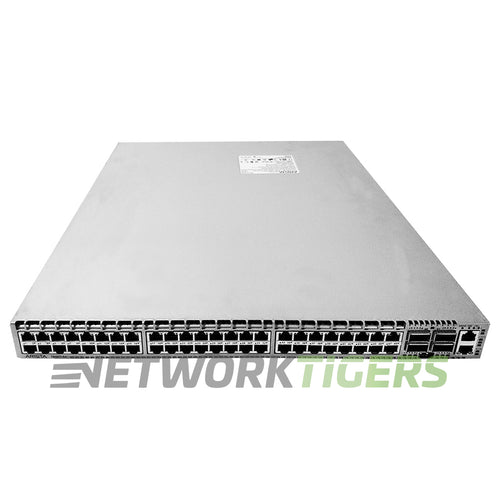

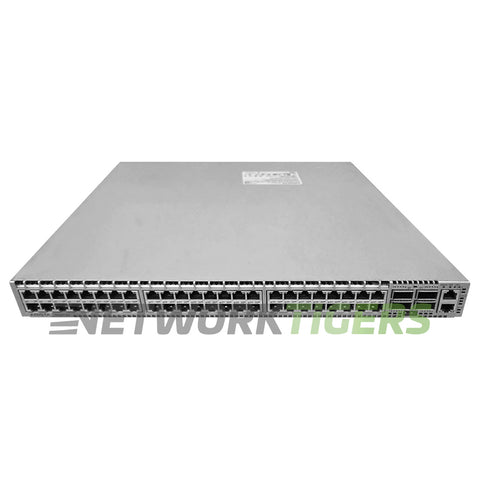

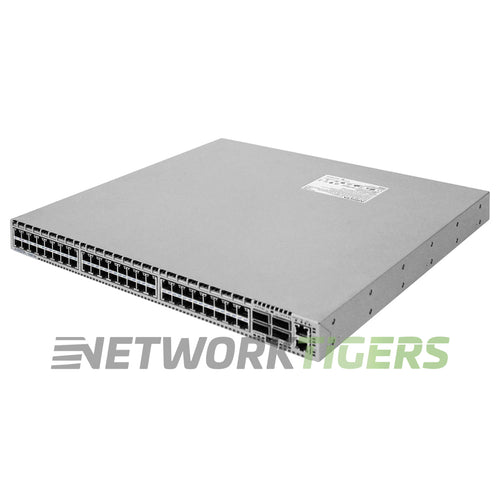

Arista DCS-7050T-64-R 48x 10GB Copper 4x 40GB QSFP+ Back-to-Front Airflow Switch

With 48 10GBASE-T RJ-45 ports at 1GbE or 10GbE and four 40GbE QSFP+ uplinks, the DCS-7050T-64-R pairs copper server access with 40GbE connections to the aggregation layer. It is a 1RU switch from the original 7050 series, and QSFP+ breakout supports up to 64 10GbE ports.

The switch moves 1.28 Tbps and 960 Mpps. Latency is 3.3 microseconds on copper and 950 to 1350 nanoseconds on QSFP+, with a 9 MB shared buffer. It has 4 GB of DRAM and 2 GB of flash; the -D variant added a 50 GB SSD.

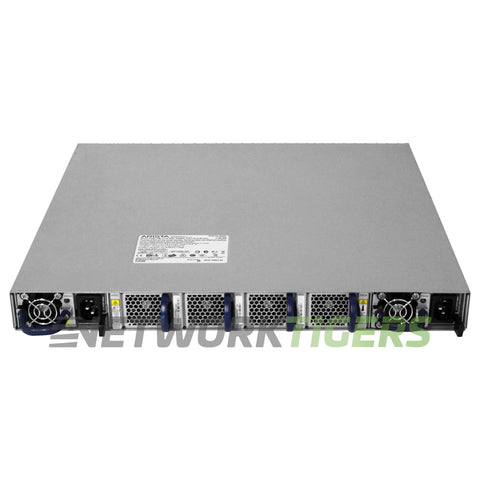

Airflow is back-to-front (port-side exhaust). A front-to-back (-F) version is also sold, so choose the direction your rack uses. Two AC power supplies are installed in 1+1 hot-swap; 460W PWR-460AC-R and PWR-460DC-R are listed as spares. Four FAN-7000-R fans run N+1, hot-swappable. Every fan and supply should share one airflow direction. Arista lists typical and maximum draw of 322W and 422W. It weighs 20.9 lb at 19 x 16 x 1.75 inches.

Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.

Arista also sells the DCS-7050T-64-F with the opposite airflow. A new DCS-7050T-64-R is also available. Matching spares include the PWR-460AC-R power supply and the FAN-7000-R fan module.

This seller refurbished DCS-7050T-64-R is tested, working, and covered by the NetworkTigers one-year warranty.
