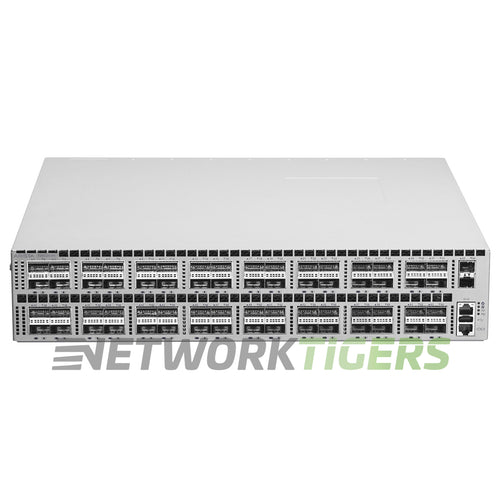

The 7260CX-64 is a 2RU 100G spine switch with 64 QSFP100 ports that run at 40G or 100G, plus two 10G SFP+ ports. Breakout cables can turn the QSFP100 ports into as many as 256 25G or 256 10G interfaces.
Arista rates it at 12.8 Tbps and 9.52 Bpps, with latency of 550 to 1500 nanoseconds and a 64 MB packet buffer using Dynamic Buffer Allocation. The control plane runs a dual-core i7 x86 CPU with 8 GB RAM and 4 GB flash.
Two 1900W AC power supplies are installed in a 1+1 redundant, hot-swap pair. They use C19-C20 cords, so plan PDU outlets to match. Spares are PWR-1900AC-R and PWR-1900-DC-R for DC. Four hot-swap FAN-7002H-R fans in N+1 move air back-to-front (port-side exhaust). A front-to-back version is also sold, so match the rack's airflow.
Arista lists power draw at 1672W typical and 2090W maximum. Management is through a 100/1000 RJ-45 port, an RJ-45 RS-232 console and USB. The chassis weighs 44.1 lb. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Arista also sells the DCS-7260CX-64-F with the opposite airflow. Matching spares include the PWR-1900AC-R power supply and the FAN-7002H-R fan module.
This seller refurbished DCS-7260CX-64-R is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 64x QSFP100 (40/100G, max 256x 25G or 256x 10G via breakout)
- Uplink Ports : 2x SFP+ (10G)
- Management Ports : 1x 100/1000 RJ-45 mgmt, 1x RS-232 RJ-45 console, 1x USB
- Switch Version : Arista EOS
- System Memory : 8 GB RAM, 4 GB flash, Dual-Core i7 x86 CPU
- AirFlow Direction : back-to-front (port-side exhaust)
- Fan Modules : 4 hot-swap (N+1)
- Power Supplies : 2x 1900W AC (1+1 redundant, hot-swap)
- Switching Capacity : 12.8 Tbps
- Forwarding Rate : 9.52 Bpps
- MAC Address Table Size : 136,000
- Max IPv4 LPM Routes : 128,000 (ALPM)
- Max IPv6 LPM Routes : 84,000 (ALPM)
- Max IPv4 Host Routes : 104,000
- HPE Part Number : JH800A
- VLANs Supported : 4096
- Packet Buffer : 64MB (Dynamic Buffer Allocation)
- Latency : 550 to 1500 ns
- CPU : Dual-Core i7 x86
- Model Number : DCS-7260CX-64-R
- Part Number : DCS-7260CX-64-R, JH800A
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista HPE DCS-7260CX-64-R JH800A 64x 100G QSFP100 2x 10G SFP+ R-F Air Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
