Arista DCS-7280SE-68-R 48x 10GB SFP+ 2x 100GB QSFP100 Back-to-Front Air Switch

~~$ 1,311.99~~
$ 1,174.99

Only 2 remaining Call if you need more

Shipping: OVERNIGHT OPTION

Condition: Seller refurbished

Warranty: 365 days

SKU: NSH-8133 ASK FOR QUOTE

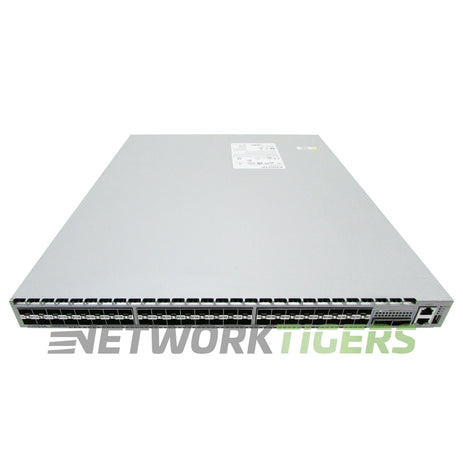

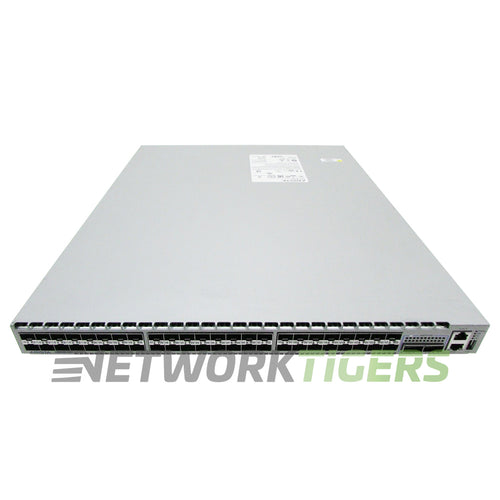

This back-to-front airflow model, the Arista DCS-7280SE-68-R, is a 1RU 7280E switch with 48 1/10GbE SFP+ ports and 2 100GbE QSFP100 uplinks. The uplinks run at 100G or 40G, or as four 10GbE links each.

Arista rates the switch at 1.36 Tbps and 900 Mpps, with 3.8 microseconds latency at 64 bytes. A 9 GB deep packet buffer (3 GB per port group) handles incast and bursty flows. Table scale is limited to 64K IPv4 LPM, 12K IPv6 LPM, 128K to 256K MAC/host and 96K ARP/ND, so it fits leaf and storage roles better than routing with large tables.

Two hot-swap 500 W AC supplies (1+1) and four hot-swap fans (N+1) ship installed. Airflow is back-to-front (port-side exhaust); keep PWR-500AC-R supplies and FAN-7000-R fans matched. The front-to-back version is DCS-7280SE-68-F. Typical power is 263 W, maximum 405 W.

Weight is 22.2 lb; size is 19 x 20.6 x 1.75 inches. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.

Arista also sells the DCS-7280SE-68-F with the opposite airflow. A new DCS-7280SE-68-R is also available. Matching spares include the PWR-500AC-F power supply and the FAN-7000-F fan module.

This seller refurbished DCS-7280SE-68-R is tested, working, and covered by the NetworkTigers one-year warranty.

Network Ports : 48x 1/10GbE SFP+
Uplink Ports : 2x 100GbE QSFP100 (100G or 40G, or 4x 10G breakout)
Management Ports : 1x 100/1000 mgmt, 1x RS-232 RJ-45 console, 1x USB
CPU : Quad-Core x86
VLAN ID's : 4096
Packet Buffer : 9GB
Switch Version : Arista EOS
AirFlow Direction : Back-to-front (port-side exhaust)
Fan Module Options : FAN-7000-F, FAN-7000-R
Power Supplies Included : 2x AC 500 W (hot-swap, 1+1)
Power Supply Options : PWR-500AC-F, PWR-500AC-R (500 W AC); PWR-500-DC-F, PWR-500-DC-R (500 W DC)
PoE Budget : None
Switching Capacity : 1.36 Tbps
Forwarding Rate : 900 Mpps
MAC Address Table Size : 256,000
Latency : 3.8 microseconds (64-byte)
DRAM and Flash : 4 GB DRAM, 4 GB flash, 120 GB SSD, quad-core x86
Model Number : DCS-7280SE-68-R
Part Number : DCS-7280SE-68-R
Condition : Seller refurbished

More information on this Arista DCS-7280SE-68-R.

One (1) Seller Refurbished Arista DCS-7280SE-68-R 48x 10GB SFP+ 2x 100GB QSFP100 Back-to-Front Air Switch as described above
Two (2) Power Cords Included
Two (2) AC Power Supplies Included
Four (4) Fan Modules Included
One (1) Set of Rack Mount Brackets Included

Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
Transceiver Modules Not Included
