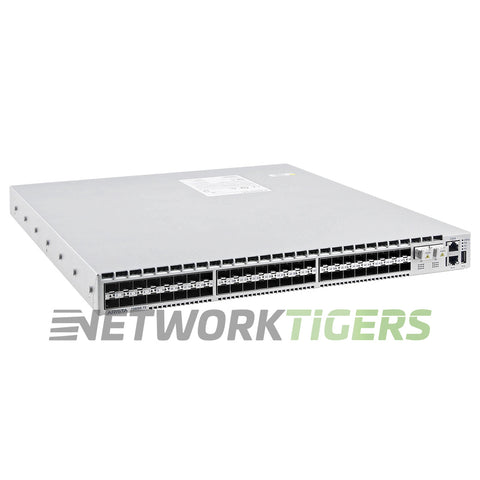

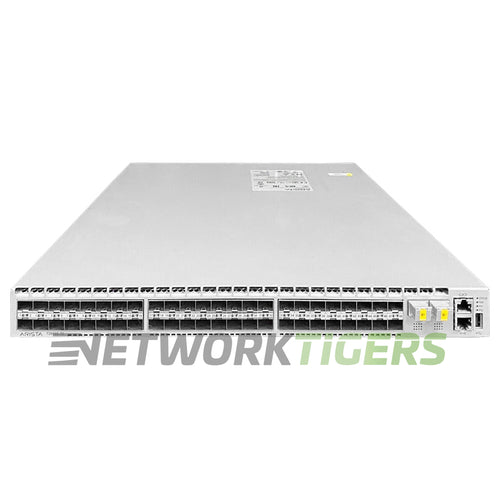

Arista DCS-7280SE-72-F 48x 10GB SFP+ 2x 100GB MXP Front-to-Back Airflow Switch

$ 361.99

4 in stock Call if you need more

Shipping: OVERNIGHT OPTION

Condition: Seller refurbished

Warranty: 365 days

SKU: NSH-6109 ASK FOR QUOTE

The Arista DCS-7280SE-72-F is a 1RU 7280E switch with 48 1/10GbE SFP+ ports and 2 MXP multimode uplinks. Each MXP port runs as 12 10GbE, 3 40GbE or a single 100GbE interface, giving flexible uplink options from one port.

Capacity is 1.44 Tbps with 900 Mpps forwarding, and Arista lists 3.8 microseconds latency at 64 bytes. A 9 GB packet buffer (3 GB per port group) handles bursty storage and leaf traffic. Layer 3 scale is limited, 64K IPv4 LPM, 12K IPv6 LPM, 128K to 256K MAC/host and 96K ARP/ND. The control plane has a quad-core x86 CPU, 4 GB DRAM, 4 GB flash and a 120 GB SSD.

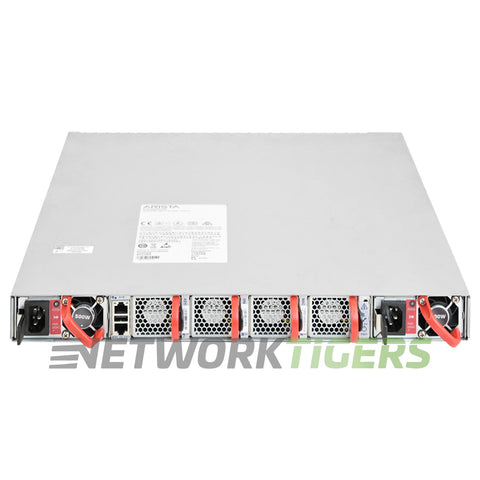

Two hot-swap 500 W AC supplies (1+1) and four hot-swap fans (N+1) are included. Airflow is front-to-back (port-side intake), using PWR-500AC-F supplies and FAN-7000-F fans. Arista also sells the back-to-front DCS-7280SE-72-R, so match your rack. Typical power is 262 W, maximum 399 W.

The switch weighs 22.4 lb and measures 19 x 20.6 x 1.75 inches. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.

Arista also sells the DCS-7280SE-72-R with the opposite airflow. A new DCS-7280SE-72-F is also available. Matching spares include the PWR-500AC-F power supply and the FAN-7000-F fan module.

This seller refurbished DCS-7280SE-72-F is tested, working, and covered by the NetworkTigers one-year warranty.

Network Ports : 48x 1/10GbE SFP+
Uplink Ports : 2x MXP multimode ports (each 12x 10G, 3x 40G or 1x 100G)
Management Ports : 1x 100/1000 mgmt, 1x RS-232 RJ-45 console, 1x USB
CPU : Quad-Core x86
VLAN ID's : 4096
Packet Buffer : 9GB
AirFlow Direction : Front-to-back (port-side intake)
Fan Module Options : FAN-7000-F, FAN-7000-R
Power Supplies Included : 2x AC 500 W (hot-swap, 1+1)
Power Supply Options : PWR-500AC-F, PWR-500AC-R (500 W AC); PWR-500-DC-F, PWR-500-DC-R (500 W DC)
PoE Budget : None
Switching Capacity : 1.44 Tbps
Forwarding Rate : 900 Mpps
MAC Address Table Size : 256,000
Latency : 3.8 microseconds (64-byte)
DRAM and Flash : 4 GB DRAM, 4 GB flash, 120 GB SSD, quad-core x86
Model Number : DCS-7280SE-72-F
Part Number : DCS-7280SE-72-F
Condition : Seller refurbished

More information on this Arista DCS-7280SE-72-F.

One (1) Seller Refurbished Arista DCS-7280SE-72-F 48x 10GB SFP+ 2x 100GB MXP Front-to-Back Airflow Switch as described above
One (1) Power Cord Included
Two (2) AC Power Supplies Included
Four (4) Fan Modules Included
One (1) Set of Rack Mount Brackets Included

Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
