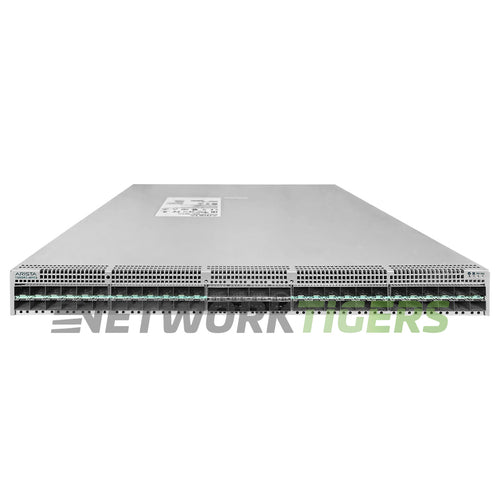

For racks with port-side exhaust, the Arista DCS-7280SR3-48YC8-R is the back-to-front version of the 7280R3 48-port 25GbE switch router. It has 48 1/10/25GbE SFP ports and 8 100GbE QSFP100 uplinks in 1RU, which also run as 8 40G or 16 50G, for up to 80 25G/10G interfaces.
Arista rates it at 2.0 Tbps (4.0 Tbps full duplex) and 1 Bpps, with latency from 3.8 microseconds and a 4 GB packet buffer. Depending on the forwarding profile, it holds up to 1450K IPv4 routes in the L3 profile plus up to 1792K more with FlexRoute, and 224K MAC addresses. This SKU does not include MACsec, which Arista offers on the SR3M models.
Two hot-swap 500 W PWR-511 AC supplies (1+1) and two hot-swap fans (N+1) ship installed. Airflow is back-to-front (port-side exhaust); use PWR-511-AC-BLUE supplies and FAN-7011M-R fans for spares. The front-to-back version is DCS-7280SR3-48YC8-F. Typical power is 154 W, maximum 324 W.
Weight is 20.2 lb and size is 17.3 x 18.38 x 1.72 inches. Advanced Layer 3 features such as BGP and OSPF need an Arista Enhanced L3 license, which is not included and is available from Arista partners.
Arista also sells the DCS-7280SR3-48YC8-F with the opposite airflow. Matching spares include the FAN-7011M-F fan module.
This seller refurbished DCS-7280SR3-48YC8-R is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1/10/25GbE SFP
- Uplink Ports : 8x 100GbE QSFP100 (max 8x 40G / 16x 50G; 80x 25G-10G total)
- Management Ports : 1x 100/1000 mgmt, 1x RS-232 RJ-45 console, 1x USB
- IPv4 Unicast Routes : L3 = 1450k, Balanced = 800k
- Packet Buffer : 4 GB
- Switch Version : Arista EOS (Group 2)
- AirFlow Direction : Back-to-front (port-side exhaust)
- Fan Module Options : FAN-7011M-F, FAN-7011M-R
- Power Supplies Included : 2x AC 500 W PWR-511 (hot-swap, 1+1)
- Power Supply Options : PWR-511-AC-RED, PWR-511-AC-BLUE, PWR-511-DC-RED, PWR-511-DC-BLUE (500 W)
- PoE Budget : None
- Switching Capacity : 2.0 Tbps (4.0 Tbps full duplex)
- Forwarding Rate : 1 Bpps
- MAC Address Table Size : Up to 384K MAC Addresses
- Latency : from 3.8 microseconds
- DRAM and Flash : 8 GB DRAM, 8 GB flash, no SSD, quad-core x86
- Model Number : DCS-7280SR3-48YC8-R
- Part Number : DCS-7280SR3-48YC8-R
- Condition : Seller refurbished
- One (1) Seller refurbished Arista DCS-7280SR3-48YC8-R 48x 25GB SFP28 8x 100GB QSFP28 B-F Airflow Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
