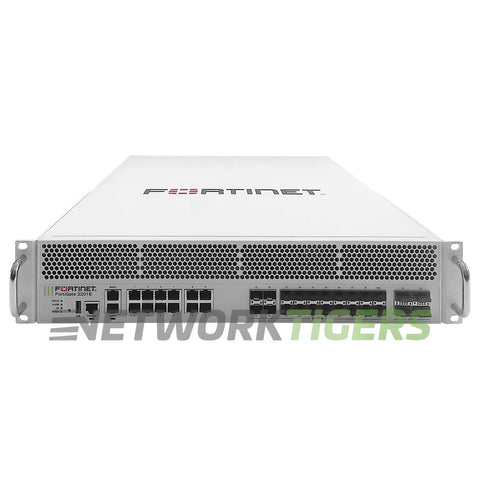

The Fortinet FG-2201E firewall delivers 158 Gbps stateful throughput with support for IPv4 and IPv6 traffic. It features 20x 25Gb SFP28, 4x 40Gb QSFP+, and 14x RJ-45 ports.
Firewall performance reaches up to 150 Mpps with an IPS throughput of 21.8 Gbps based on enterprise traffic mixes. Threat protection runs at 11 Gbps, while NGFW capabilities reach 13.5 Gbps under the same conditions. Handling large-scale deployments, it supports up to 24 million concurrent sessions and achieves IPsec VPN speeds of 98 Gbps, ensuring secure connectivity across distributed networks without latency bottlenecks or delays in data transmission during high-demand operations.
Fortinet FG-2201E: 4x 40 GE QSFP+ slots, 20x 25 GE SFP28 slots (including 18x ports, 2x HA ports), 14x GE RJ45 ports (including 12x ports, 2x management ports), SPU NP6 and CP9 hardware accelerated, and dual AC power supplies, with 2x 1 TB SSD onboard storage. This unit is not registrable on the FortiCloud - it is set up for local management only.
- Network Ports : 20x 25 Gigabit Ethernet SFP28, 14x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x 1GB RJ-45 Management, 1x USB, 1x RJ-45 Console
- Registrable : No - This unit is not registrable on the FortiCloud - it is set up for local management only
- Fans / Airflow Direction : Built In (Fixed)
- Power : 2x D1U54P-W-1200-12-HA4PC PSU's
- Stateful Throughput : IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) = 158 / 155 / 100 Gbps, IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) = 158 / 155 / 100 Gbps
- Firewall Throughput : 150 Mpps
- IPS Throughput : 21.8 Gbps (Enterprise Traffic Mix)
- Threat Protection Throughput : 11 Gbps (Enterprise Traffic Mix)
- NGFW Throughput : 13.5 Gbps (Enterprise Traffic Mix)
- Concurrent Sessions : 24 Million
- New Sessions/Second : 500 000
- IPsec VPN Throughput : 98 Gbps
- IPsec VPN Tunnels : 20 000 (Gateway-to-Gateway), 100 000 (Client-to-Gateway)
- SSL-VPN Throughput : 10 Gbps
- SSL Inspection Throughput : 17 Gbps
- Hard Drive : 2x 1 TB SSD onboard storage.
- Model Number : FG-2201E
- Part Number : FG-2201E
- Condition : New
- One (1) NEW Fortinet FG-2201E 158 Gbps Local Management Only Firewall as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Rack Mount Brackets Not Included
