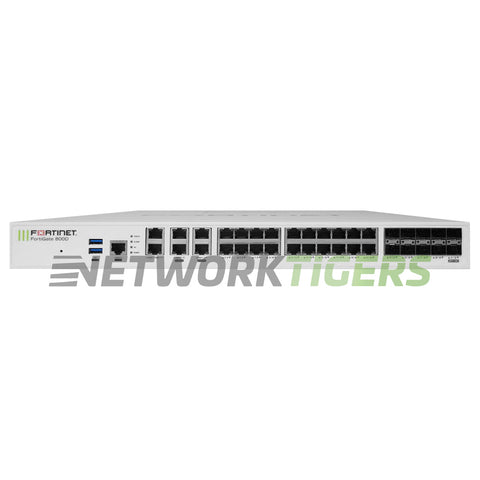

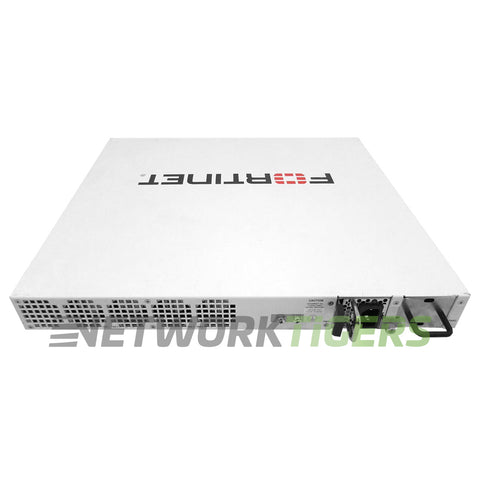

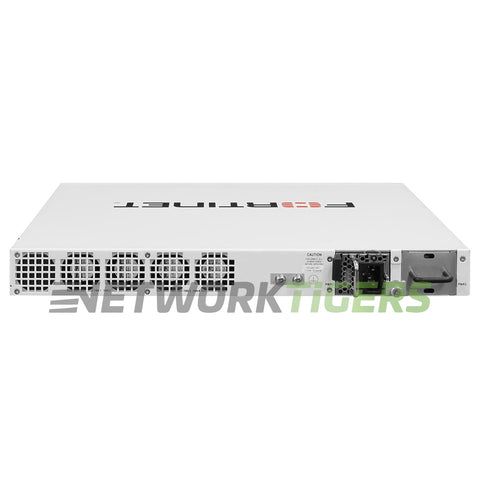

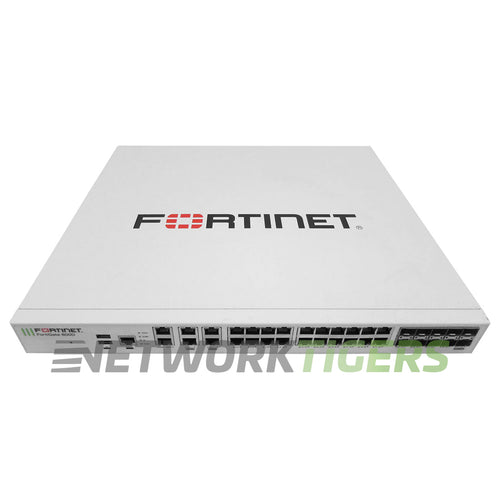

Fortinet FG-800D FortiGate 800D Series is a rack-mountable firewall with up to 36 Gbps throughput. Manufactured by Fortinet, it supports interfaces delivering low latency of 3 μs and handles stateful traffic at speeds of 36 Gbps (IPv4/IPv6) and packet rates up to 33 Mpps.
The unit includes multiple Ethernet ports for flexible connectivity options. It offers IPsec VPN throughput of up to 20 Gbps and accommodates approximately five million concurrent sessions. Suitable for data centers or enterprise deployments, the device can be integrated into standard racks using its rackmount form factor. Power is supplied via redundant AC inputs depending on configuration model support.
Fortinet FG-800D: 22x GE RJ45 ports, 4x GE RJ45 with Bypass Protection, 8x GE SFP slots, 2x 10 GE SFP+ slots, SPU NP6 and CP8 hardware accelerated, 240 GB Internal onboard SSD storage. This unit is not registrable on the FortiCloud - it is set up for local management only.
- Network Ports : 22x 1 Gigabit Ethernet RJ45, 4x 1 Gigabit Ethernet RJ45 with Bypass Protection
- Uplink Ports : 8x 1 Gigabit Ethernet SFP, 2x 10 Gigabit Ethernet SFP+
- Management Ports : 1x Console, 2x USB, 2x GE Management
- Registrable : No - This unit is not registrable on the FortiCloud - it is set up for local management only
- Firewall Latency : 3 μs
- Fans / Airflow Direction : Fixed Internal
- Power : 2x AC PSU Slots - 1x PSU Included
- Stateful Throughput : 36 / 36 / 22 Gbps (IPv4, IPv6)
- Firewall Throughput : 33 Mpps
- IPS Throughput : 4.2 Gbps (Enterprise Traffic Mix)
- Threat Protection Throughput : 3 Gbps (Enterprise Traffic Mix)
- NGFW Throughput : 4 Gbps (Enterprise Traffic Mix)
- Concurrent Sessions : 5 Million
- New Sessions/Second : 280,000
- IPsec VPN Throughput : 20 Gbps
- SSL-VPN Throughput : 2.2 Gbps
- SSL Inspection Throughput : 3.9 Gbps
- Hard Drive : 240 GB Internal onboard SSD storage
- Model Number : FG-800D
- Part Number : FG-800D
- Condition : Seller refurbished
- One (1) Seller refurbished Fortinet FG-800D FortiGate 800D Series 36 Gbps Local Management Only Firewall as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
