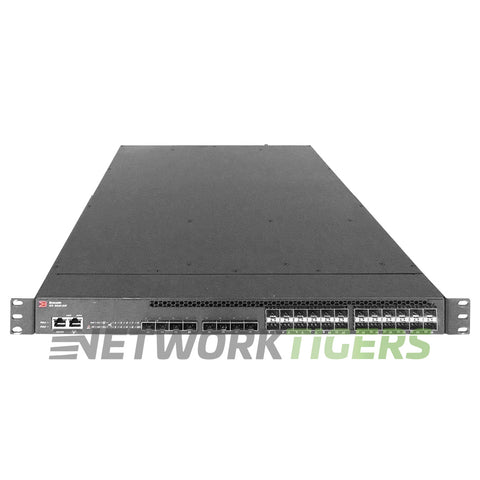

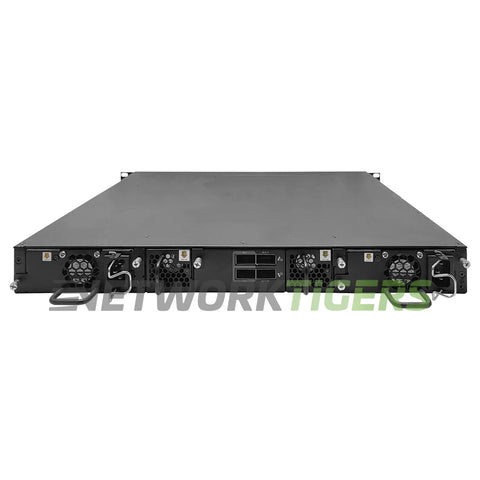

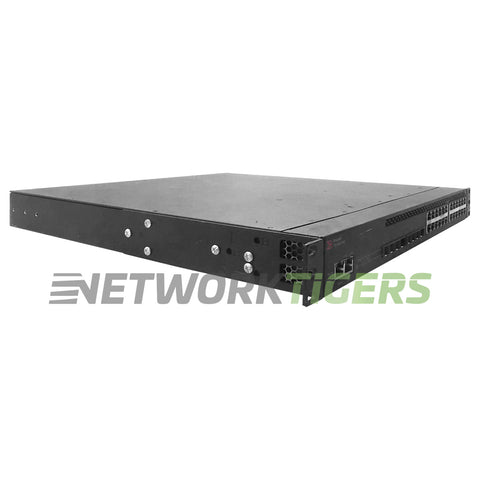

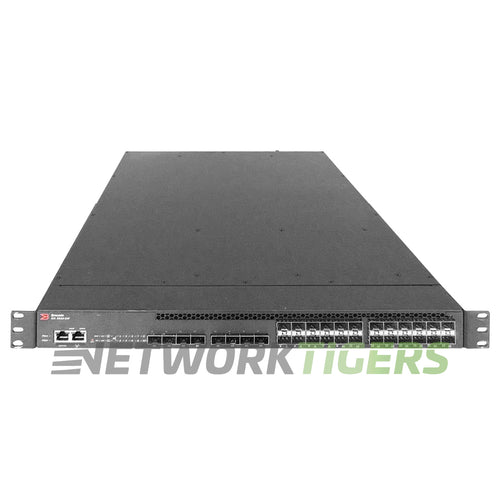

Brocade ICX6610-24F-PE 24x 1GB FC SFP 8x 1GB SFP F-B Airflow (Premium) Switch

Brocade ICX6610-24F-PE 24x 1GB FC SFP 8x 1GB SFP F-B Airflow (Premium) Switch

$ 367.99
$ 232.99
25 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6304
UPC: 729198003036

Overview

The Brocade ICX6610-24F-PE switch is a high-performance networking device designed for data centers, offering advanced features and reliable performance. With 24x 1GB FC SFP ports and 8x additional 1GB SFP F-B Airflow (Premium) ports, this switch provides flexible connectivity options.

With a switching capacity of up to 528 Gbps and a forwarding rate of up to 396 Mpps, the ICX6610-24F-PE can easily handle heavy network traffic. It also boasts a large MAC address table size of up to 32,000 entries.

This switch is known for its efficient airflow design, ensuring excellent cooling capabilities while maintaining low power consumption levels. This makes it suitable for deployment in various environments where energy efficiency is crucial.

Brocade ICX6610-24F-PE: 24-port 1 GbE SFP, plus 8x 1 GbE SFPP uplink ports (upgradable to 10 GbE). 4x 40 GbE QSFP stacking ports. 1 power-supply-side exhaust, hot-swappable fan assembly, and 250 W power supply. Premium software.


Specifications

  • Network Ports : 24x 1 Gigabit Fiber Channel SFP
  • Uplink Ports : 8x 1 Gigabit Ethernet SFP Uplink (upgradable to 10 GbE),
  • Stacking Ports : 4x 40G QSFP+ Stacking
  • Firmware Version : Premium Software
  • Fan Modules AirFlow Direction : 1x Hot Swappable Fan Assembly - Front-to-Back Airflow (PSU-Side Exhaust Airflow)
  • Power Supplies Included : 1x 250W AC PSU Included - Dual Slots - Front-to-Back Airflow (PSU-Side Exhaust Airflow)
  • Switching Capacity : 528 Gbps
  • Forwarding Rate : 396 Mpps
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • Model Number : ICX6610-24F-PE
  • Part Number : ICX6610-24F-PE
  • Condition : Seller refurbished


Included

  • One (1) Seller refurbished Brocade ICX6610-24F-PE 24x 1GB FC SFP 8x 1GB SFP F-B Airflow (Premium) Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
