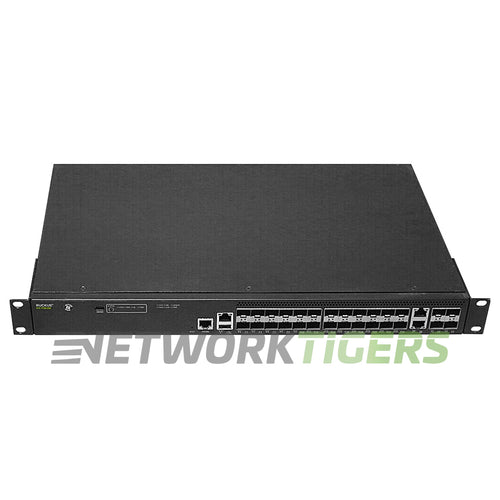

The Ruckus ICX7150-24F-4X10GR Brocade Switch is a highly efficient and feature-rich network switch suitable for small and medium-sized businesses. This switch offers excellent connectivity options with 24x 1GB SFP ports, 2x 1GB RJ-45 ports, and 4x 10GB SFP+ uplink/stacking ports.
This product boasts an impressive switching capacity of up to 132 Gbps, allowing it to handle heavy data traffic without performance degradation. Users can expect fast packet processing with a forwarding rate of 98 Mpps (million packets per second).
One standout feature is the maximum MAC address table size, which supports up to 16,384 MAC addresses. This ensures smooth communication within your network regardless of how many devices are connected.
Ruckus ICX 7150 Switch, 24x 1G SFP ports, 2x 1G RJ45 uplink-ports and 4x 10G SFP+ stacking/uplink-ports, L3 features (OSPF, VRRP, PIM, PBR).
- Network Ports : 24x 1 Gigabit Ethernet SFP
- Uplink Ports : 2x 1 Gigabit Ethernet RJ-45 Uplink, 4x 10 Gigabit SFP+
- Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Out of Band Management, 1x USB Type C, 1x USB (for external file storage)
- Stacking Ports : Uplink ports can be used for stacking
- Aggregated stacking bandwidth (data rate, full duplex) : 480 Gbps
- AirFlow Direction : Side to Back Airflow
- Power Supplies Included : 1x Internal AC Power Supply
- Switching Capacity : 132 Gbps
- Forwarding Rate : 98 Mpps
- MAC Address Table Size : 16,384
- Maximum VLAN's : 4,095
- DRAM and Flash : DRAM = 1GB
- Model Number : ICX7150-24F-4X10GR
- Part Number : ICX7150-24F-4X10GR
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus ICX7150-24F-4X10GR Brocade 24x 1GB SFP 2x 1GB RJ-45 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
