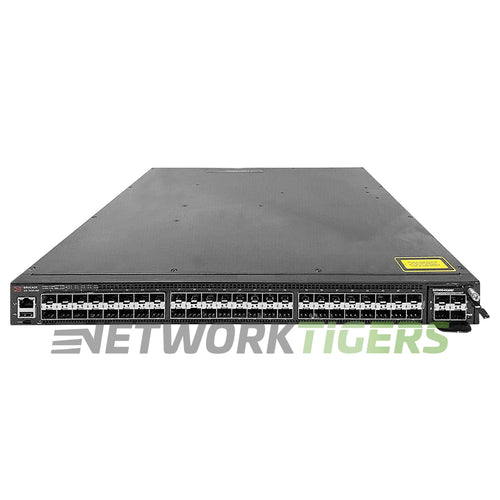

Ruckus Brocade ICX7450-48F-E 48x 1GB FC SFP F-B Switch w/ 3x Expansion Modules

Ruckus Brocade ICX7450-48F-E 48x 1GB FC SFP F-B Switch w/ 3x Expansion Modules

$ 1,432.99
$ 1,368.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-7168
UPC: 682276819854


The Ruckus Brocade ICX7450-48F-E is a high-performance switch designed for network deployments requiring reliable and fast connectivity. With 48x 1GB FC SFP ports, it offers versatile options for connecting various devices.

Featuring three expansion module slots (one on the front and two at the rear), this switch allows you to customize your setup according to your needs. It comes bundled with one ICX7400-4X10GF module, offering four 1/10 GB SFP/SFP+ interfaces, as well as two ICX7400-1X40GQ modules providing one QSFP+ interface each.

With a switching capacity of 336 Gbps and a forwarding rate of up to 250 Mpps, this switch delivers excellent performance even in demanding environments. Boasting a MAC Address Table Size of up to 32,000 entries.

Ruckus ICX7450-48F-E : 48-port 1 GbE SFP fiber switch bundle includes 4x 10 GbE SFP+ uplinks/stacking, 2x 40 GbE QSFP+ uplinks/stacking, 1x 250 W AC power supply and one fan, front-to-back airflow.


  • Network Ports : 48x 1 Gigabit Fiber Channel SFP
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+ (through the use of the ICX7400-4X10GF Module)
  • Management Ports : 1x RJ45 Management, 1x Mini USB Serial Management, 1x USB Storage Port
  • Stacking Ports : 2x 40 Gigabit QSFP+ Stacking/ Uplink (through the use of 2x ICX7400-1X40GQ Modules)
  • Stacking Options : Up to 12 RUCKUS ICX 7450 switches can be stacked together using two full-duplex QSFP+ 40 Gbps ports that provide a fully redudant backplane with 960 Gbps of stacking bandwidth
  • Module Slots : 3x Expansion Module Slots (1x Front of Switch, 2x Rear of Switch) - 1x ICX7400-4X10GF (4x 1/10 GB SFP/SFP+) Included, 2x ICX7400-1X40GQ (1x 40 GB QSFP+ module) Included
  • Module Options : Options are ICX7400-4X1GF, ICX7400-4X10GF, ICX7400-4X10GC, ICX7400-1X40GQ, ICX7400-SERVICE-MOD
  • Stack Members : It offers market-leading stacking density with up to 12 switches (576x 1 GbE and 144x 1/10 GbE ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution
  • AirFlow Direction : Front to Back Airflow
  • Fan Module Options : 2x Fan Module Slots - 1x ICX-FAN10-E Fan Included - Front to Back Airflow
  • Power Supplies Included : 2x PSU Slots - 1x RPS15-E 250W AC PSU Included
  • Power Supply Options : RPS15-I is the B-F airflow option
  • Switching Capacity : 336 Gbps
  • Forwarding Rate : 250 Mpps
  • MAC Address Table Size : 32,000
  • Latency : 1.3 μs (Average)
  • DRAM and Flash : 2GB DRAM, 2GB Flash
  • Model Number : ICX7450-48F-E
  • Part Number : ICX7450-48F-E
  • Condition : Seller refurbished


  • One (1) Seller Refurbished Ruckus Brocade ICX7450-48F-E 48x 1GB FC SFP F-B Switch w/ 3x Expansion Modules as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
