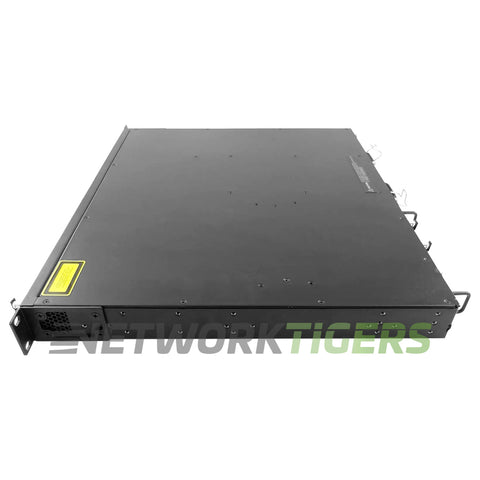

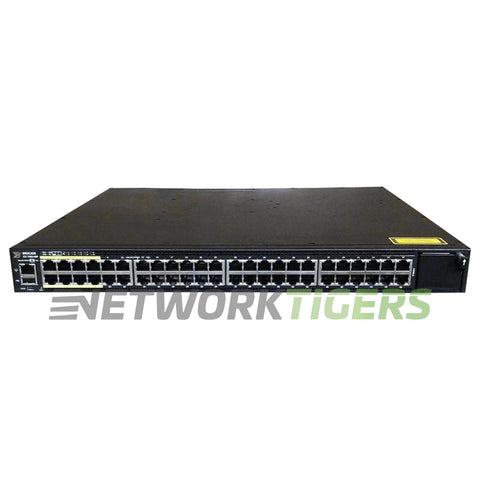

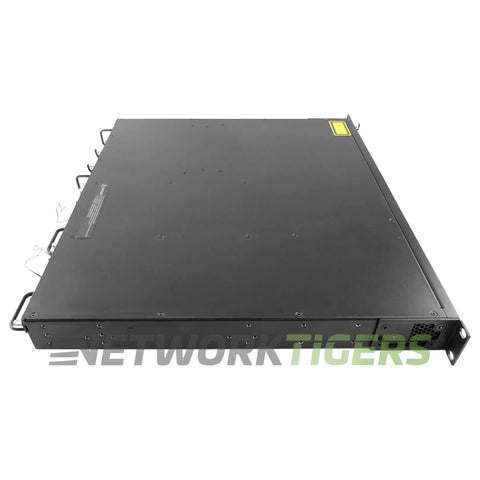

NEW Ruckus Brocade ICX7450-48P-E 48x 1GB PoE+ RJ45 2x 40GB QSFP+ F-B Air Switch
New

NEW Ruckus Brocade ICX7450-48P-E 48x 1GB PoE+ RJ45 2x 40GB QSFP+ F-B Air Switch

$ 879.99
$ 646.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2955
UPC: 783555223147

Overview

The Ruckus Brocade ICX7450-48P-E is a powerful switch designed for enterprise networks. With 48 Gigabit Ethernet ports, each capable of providing PoE+ support to connected devices, this switch offers excellent flexibility in powering various network equipment such as access points and IP phones.

Equipped with two 40GB QSFP+ uplink ports, the ICX7450-48P-E ensures high-speed connectivity between switches or other networking devices. Its impressive switching capacity of 336 Gbps allows for seamless data transmission within your network infrastructure.

With a forwarding rate of 250 Mpps (million packets per second) and a MAC address table size that can accommodate up to 32,768 addresses, this switch can handle heavy loads without effecting performance or causing bottlenecks.

Brocade ICX7450-48P-E: 48-port 1 GbE switch PoE+ bundle includes 4x 10 GbE SFP+ uplinks/stacking, 2x 40 GbE QSFP+ uplinks/stacking, 1x 1,000 W AC power supply and one fan, front-to-back airflow.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+ (Uplink/ Stacking) through the use of 2x ICX7400-1X40GQ Modules - see "Module Slots and Options"
  • Management Ports : 1x Mini-USB RS232 Serial (Mini-B plug), 1x RJ45 1 Gigabit Management, 1x USB
  • Aggregated Stacking Bandwidth (data rate, full duplex) : 960 Gbps
  • Module Slots and Options : 3x Modules Slots for Uplink/Stacking (1x Free) - 1x Module Slot on front of switch, 2x Module Slots on rear of switch
  • Uplink and Stacking Module Options : ICX7400-4X1GF (4x 1GB SFP), ICX7400-4X10GF (4x 10GB SFP+), ICX7400-4X10GC (4x 10GB RJ45), ICX7400-1X40GQ (1x 40GB Uplink/Stack), ICX7400-SERVICE-MOD (Service Module)
  • Fan Modules AirFlow Direction : 2x Fan Module Slots - 1x ICX-FAN10-E Fan Module Included - Front-to-Back Airflow
  • Power Supplies Included : 2x PSU Slots - 1x RPS16-E 1000W AC Power Supply Included - Front-to-Back Airflow
  • PoE Budget : 1500W
  • Switching Capacity : 336 Gbps
  • Forwarding Rate : 250 Mpps
  • MAC Address Table Size : 32,768
  • Rack Mounts : Included (1-RU)
  • Model Number : ICX7450-48P-E
  • Part Number : ICX7450-48P-E
  • Condition : New


Included

  • One (1) NEW Ruckus Brocade ICX7450-48P-E 48x 1GB PoE+ RJ45 2x 40GB QSFP+ F-B Air Switch as described above
