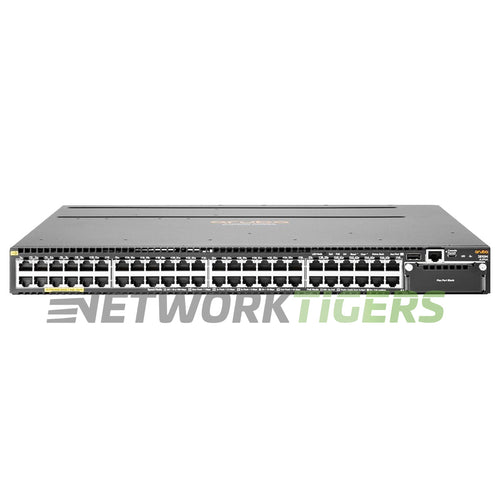

HPE JL074A Aruba 3810 Series 48x Gigabit Ethernet PoE+ Switch - NetworkTigers

HPE Aruba JL074A 3810 Series 48x 1GB PoE+ RJ-45 1x Expansion Module Slot Switch

$ 6,189.99
$ 3,674.99
Only 2 remaining Question Icon Tooltop In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Check bullet point Shipping: OVERNIGHT OPTION Question Icon Tooltop Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Check bullet point Condition: Seller refurbished Question Icon Tooltop Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Check bullet point Warranty: 365 days Question Icon Tooltop Warranty coverage period
Check bullet point SKU: NSH-6413
Check bullet point UPC: 888793596609

Overview

JL074A HPE Switch: NetworkTigers offers this Switch for sale. This HPE JL074A Switch we sell is tech tested and set to defaults. We can overnight this HPE JL074A Switch to your site.

The Aruba JL074A is a member of the 3800 Series of network products. The 3800 Series provides high performance switching capabilities and resiliency for enterprises and branch office networks. Layer 3 switching with low latency.

Aruba JL074A: 48x Gigabit Ethernet PoE+ RJ-45 network ports. 1x Modue slot for optional uplink. Modular power supplies which are not included.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
  • Product Family : Aruba 3810 Series
  • Management Ports : 1x RJ-45 Console, 1x Out-of-Band Management, 1x Dual-Personality (RJ-45 or USB micro-B), 1x USB/AUX
  • Stacking Ports : 1x Stacking Module Slot - The JL084A Stacking Module is not included - High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
  • Module Slots and Options : 1x Expansion Module Slot - None Included - Options are - JL079A (2x 40GB QSFP+), JL078A (1x 40GB QSFP+), JL081A (4x 10GB SFP+), JL083A (4x 10GB SFP+)
  • Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
  • Fan Modules AirFlow Direction : 1x JL088A Aruba 3810 Switch Fan Tray Included
  • Power Supplies Included : 2x Slots (Min 1x Required) - Ordered Separately - options are - JL086A (680W AC), JL087A (1050W)
  • PoE Budget : 1440W (Max)
  • Switching Capacity : 320 Gbps
  • Forwarding Rate : 190.5 Mpp
  • MAC Address Table Size : 64,000
  • Latency : < 2.8 uS (FIFO 64-byte packets) (1000MB)
  • Rack Mounts : Included (1-RU)
  • Model Number : JL074A
  • Part Number : JL074A
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Aruba HPE JL074A 3810 Series 48x 1GB PoE+ RJ-45 1x Expansion Module Slot Switch as described above
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Power Supplies Not Included
  • Transceiver Modules Not Included
  • Network Modules Not Included
  • Power Cord Not Included
