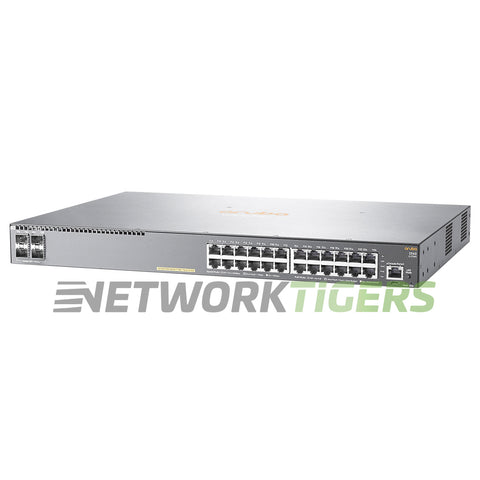

NEW HPE Aruba JL356A 2540 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch
New

NEW HPE Aruba JL356A 2540 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-4210
UPC: 190017094625

Overview

The HPE Aruba JL356A 2540 switch boasts impressive features for network operation. With a switching capacity of 128 Gbps, it provides fast data transfer. The switch also offers scalability with its 4x integrated SFP+ ports and 24x RJ-45 PoE+ ports, providing flexibility to connect various devices.

An important consideration is the switch's Power over Ethernet (PoE) budget of 370W, which allows you to power multiple PoE-enabled devices simultaneously without needing separate cables or adapters. This feature eliminates clutter and simplifies deployment.

Overall, the HPE Aruba JL356A provides reliable performance for small and medium-sized businesses seeking affordable networking solutions. Its non-blocking architecture contributes to smooth communication between connected devices while maintaining security measures.

Aruba JL356A: 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x Dual-personality (RJ-45 or USB micro-B) Serial Console
  • AirFlow Direction : Side-to-Side Airflow
  • Power Supplies Included : 1x AC Internal Power Supply
  • PoE Budget : 370W
  • Switching Capacity : 128 Gbps
  • Forwarding Rate : 95.2 Mpps
  • MAC Address Table Size : 16,384 entries
  • Model Number : JL356A
  • Part Number : JL356A
  • Condition : New


Included

  • One (1) NEW Aruba HPE JL356A 2540 24x 1GB PoE+ RJ-45 4x 10GB SFP+ Switch as described above
