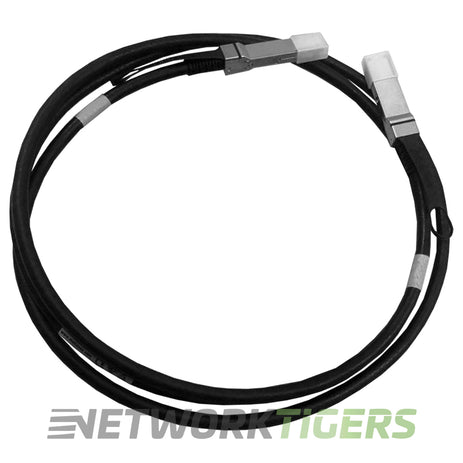

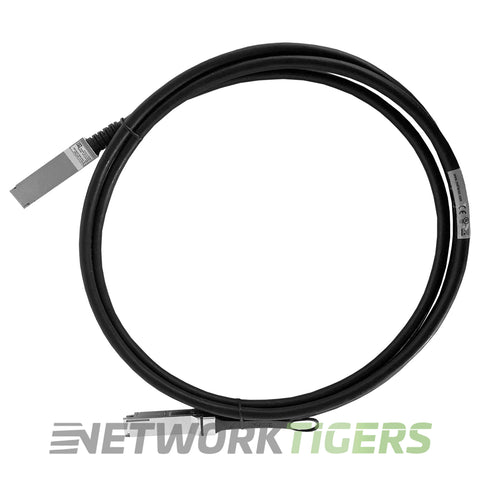

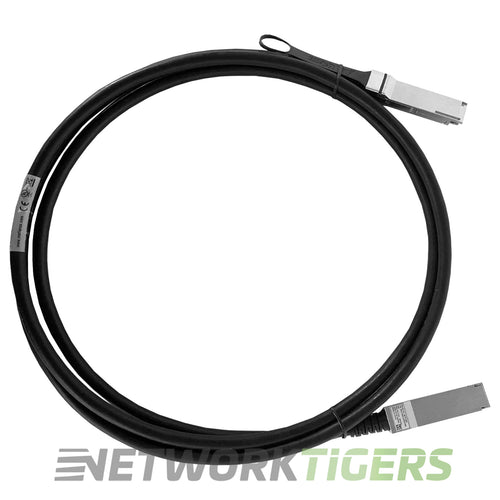

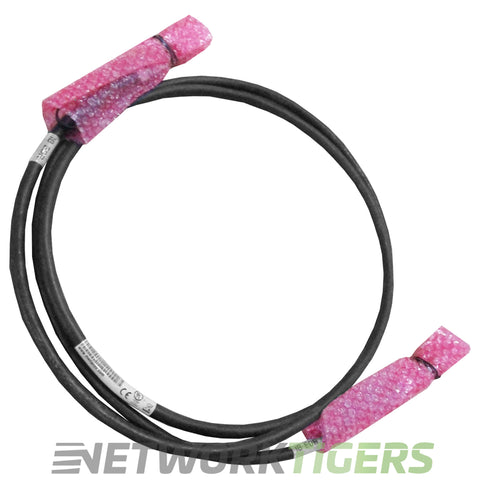

The NVIDIA Mellanox MCP1600-E02AE26 is a 2.5m passive copper cable for EDR InfiniBand at 100Gb/s, with QSFP28 connectors on both ends. It links EDR InfiniBand switches and ConnectX adapters inside a rack or to the next rack.
A passive copper cable, also called a DAC, has no optics and draws no power, making it the lowest-cost, lowest-latency way to connect ports that sit close together. It plugs directly into EDR switches such as the SB7700, SB7800, and SB7890, and into ConnectX-4, ConnectX-5, and ConnectX-6 adapters running EDR InfiniBand. For runs longer than a few meters, use an active optical cable such as the MFA1A00-E010.
The E in the part number means EDR InfiniBand. For 100GbE Ethernet, choose an MCP1600-C cable instead.
nVidia Mellanox MCP1600-E02AE26: passive copper cable, InfiniBand EDR, up to 100Gb/s, QSFP28, 26AWG, 2.5m.
- Cable Type : Direct Attach Copper Cable
- Product Description : NVIDIA Mellanox Direct Attach Copper Cable IB EDR QSFP28 100GBase-CU (Passive Twinax 2.5m)
- Cable Length : 2.5m
- Connector 1 : QSFP28
- Connector 2 : QSFP28
- Speed : 100 Gbps
- Model Number : MCP1600-E02AE26
- Part Number : MCP1600-E02AE26
- Condition : Seller refurbished
- One (1) Seller refurbished nVidia Mellanox MCP1600-E02AE26 2.5m 100GB QSFP28 Direct Attach Copper Cable as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website
