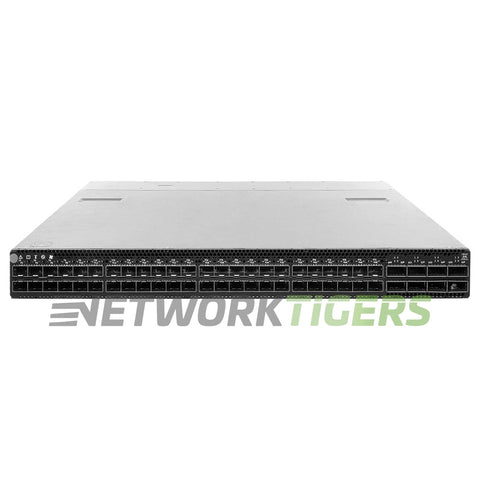

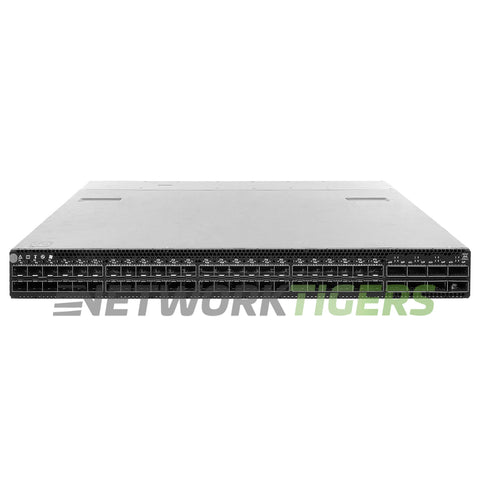

The NVIDIA Mellanox MSN2410-BB2FC is a Spectrum SN2410 top-of-rack Ethernet switch with 48 SFP28 ports that run at 10GbE and 8 QSFP28 uplink ports that run at 100GbE, in a short-depth 1U chassis. It connects a rack of 10GbE servers and storage to a 100GbE spine. This is the Cumulus Linux version, marked by the C at the end of the part number.

The 48 server ports use SFP28 cages, but on the BB model they run at 10GbE. That is the only difference from the MSN2410-CB2FC, which runs the same ports at 25GbE. The SFP28 cages take standard 10G SFP+ optics and DAC cables. Each 100GbE uplink can also be split into two 50GbE ports. Choose the BB2FC when your servers connect at 10GbE and you want Cumulus Linux with 100GbE uplinks. If your servers connect at 25GbE, choose the MSN2410-CB2FC instead.

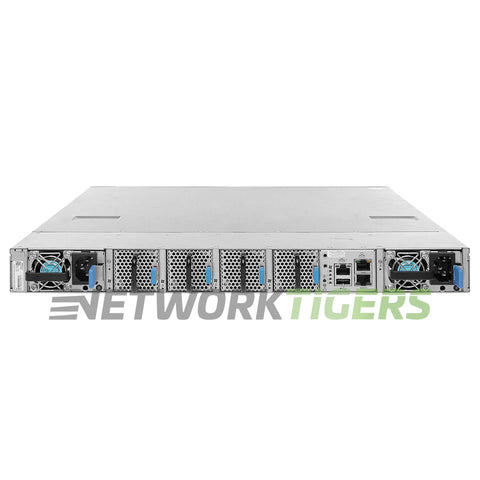

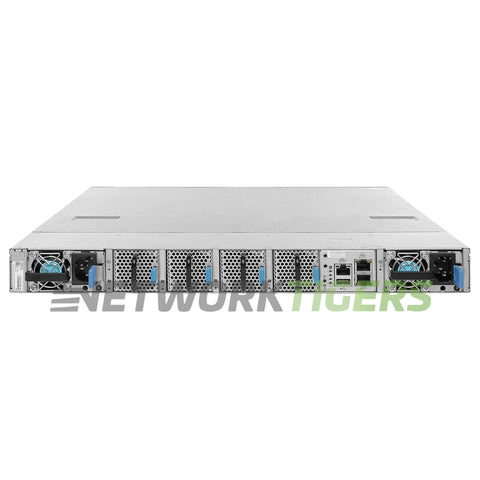

This listing names its airflow, so it ships configured with two AC power supplies and fans for back-to-front (P2C) airflow. Covered by our 365-day warranty.

Mellanox MSN2410-BB2FC: NVIDIA Spectrum-based 10GbE/100GbE 1U Open Ethernet switch with Cumulus Linux, 48x SFP28 ports at 10GbE, 8x QSFP28 ports at 100GbE, 2x power supplies (AC), x86 CPU, short depth, P2C airflow (back-to-front), rail kit.
