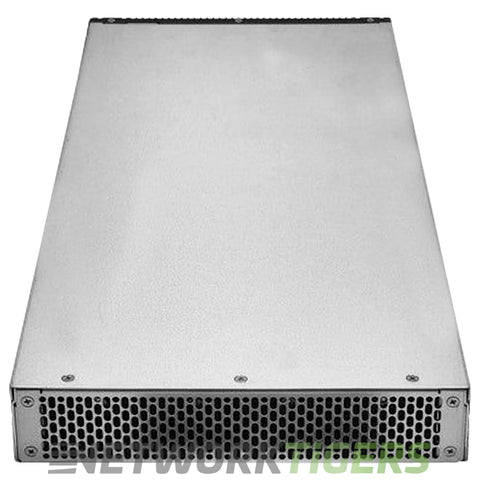

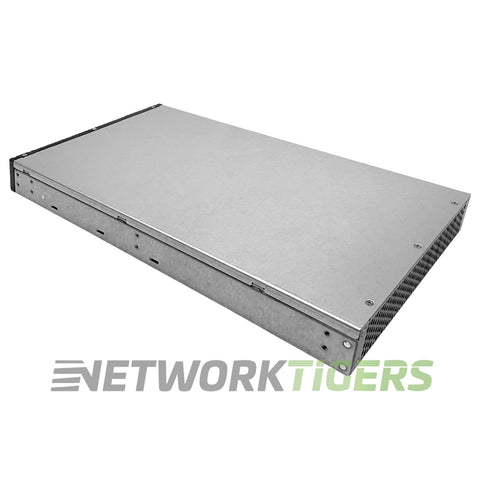

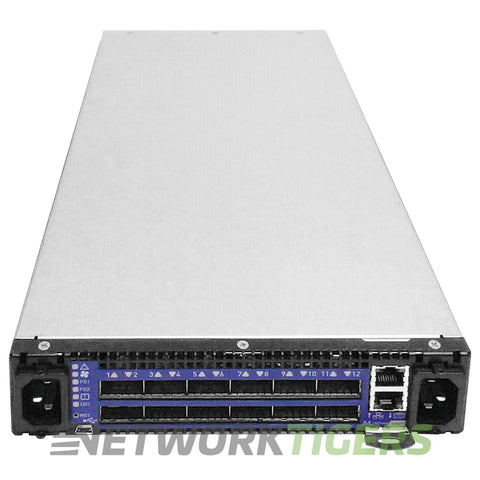

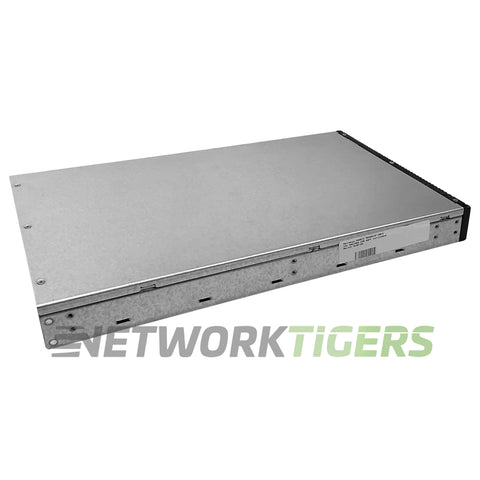

The NVIDIA Mellanox MSX6012F-2BFS is a switch-form-factor InfiniBand switch with 12 QSFP+ interfaces supporting 56 Gb/s FDR transmission.
It provides up to 1.3 Tb/s of aggregate switching capacity in half-width operation and 200 ns port-to-port latency. The B-F airflow configuration is designated P2C. Its 12 QSFP+ ports support FDR InfiniBand links for cluster interconnects.
Mellanox MSX6012F-2BFS: SwitchX®-2 based FDR InfiniBand 1U Switch, 12 QSFP+ (56GB) ports, 2 Power Supplies (AC), PPC460, short depth, Connector airflow out, Rail Kit must be purchased separately, RoHS6.
- Network Ports : 12x 56 Gigabit Ethernet QSFP+
- Management Ports : 1x RS232 port over DB9, 1x RJ45 Management, 1x Mini USB
- Firmware Version : FDR Infiniband
- Fan Modules AirFlow Direction : Front-to-Back Airflow
- Power Supplies Included : 2x AC Power Supply Included
- Switching Capacity : Up to 1.3Tb/s aggregate switching half-width capacity
- Latency : Port-to-port latency 200ns
- Rack Mounts : Not Included (1-RU)
- Model Number : MSX6012F-2BFS
- Part Number : MSX6012F-2BFS
- Condition : New
- One (1) NEW Nvidia Mellanox MSX6012F-2BFS 12x 56GB QSFP+ B-F Airflow (P2C) FDR Switch as described above
