The Cisco N9K-C93108TC-FX3P switch delivers a switching capacity of 2.16 Tbps and a forwarding rate of 1.2 Bpps, ensuring high data throughput. It features 48 Multi-Gigabit UPoE RJ45 ports supporting speeds from 100 Mbps to 10 Gbps and six QSFP28 uplink ports capable of handling up to 100 Gbps each.
The MAC address table supports up to 512,000 entries for enhanced scalability in large deployments. This model includes front-to-back airflow cooling for maintaining stable operation in rack configurations while supporting power efficiency with Universal Power over Ethernet (UPoE).

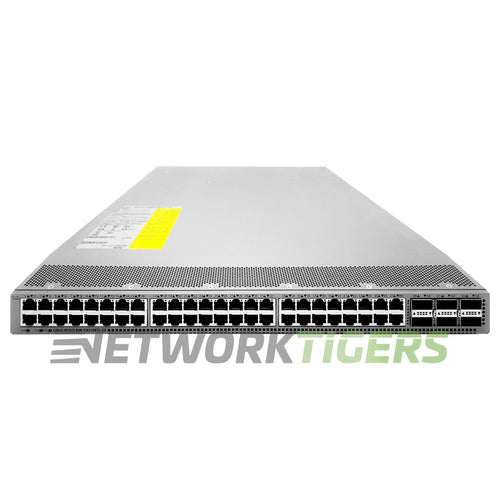

Cisco N9K-C93108TC-FX3P 48x MultiGB UPoE RJ45 6x 100GB QSFP28 F-B Air Switch
- Network Ports : 48x MultiGigabit Ethernet (100M/1/2.5/5/10GB) UPoE (60W per port) RJ45
- Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x RJ45 Management, 1x SFP, 1x USB
- Stacking Ports : Maximum number of multicast routes - 128,000
- Stacking Options : Maximum number of IPv4 Longest Prefix Match (LPM) routes - 1,792,000
- Stacking Cable Options : Maximum number of IPv6 Longest Prefix Match (LPM) routes - 896,000
- Module Slots : VLAN's - 40963
- Module Options : Packet Buffer - 40 MB
- Switch Version : SSD - 128 GB
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
- Fan Module Options : 4x NXA-FAN-35CFM-PI Fan Modules Included - Front-to-Back Airflow
- Power Supplies Included : 2x NXA-PAC-1100W-PI PSU's Included - Front-to-Back Airflow
- Power Supply Options : NXA-PAC-1100W-PE, NXA-PAC-1100W-PI, NXA-PAC-1900W-PI, NXA-PAC-930W-PI
- PoE Budget : Depends on PSU Configuration - 2x 1900W PSU (Non Redundant) = 1920W, 2x 1900W PSU (Redundant) = 1300, 2x 1100W PSUs (Non redundant) = 1600W, 2x 1100W PSUs (Redundant) = 500
- Switching Capacity : 2.16 Tbps
- Forwarding Rate : 1.2 Bpps
- MAC Address Table Size : 512,000
- Latency : CPU - 4 cores
- DRAM and Flash : System Memory - Default = 16GB, Expandable = 16GB
- Model Number : N9K-C93108TC-FX3P
- Part Number : N9K-C93108TC-FX3P
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco N9K-C93108TC-FX3P 48x MultiGB UPoE RJ45 6x 100GB QSFP28 F-B Air Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Rack Mount Brackets Not Included
- Rack Mount Rails Not Included
