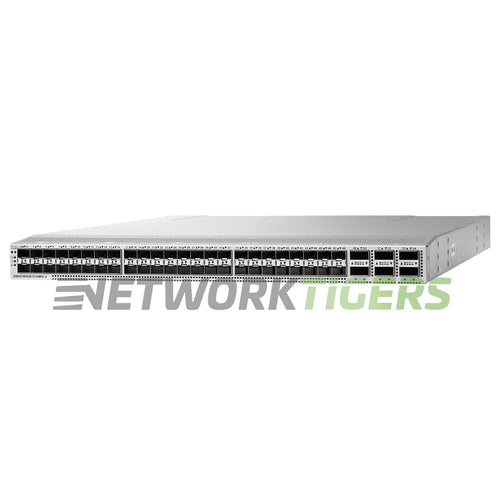

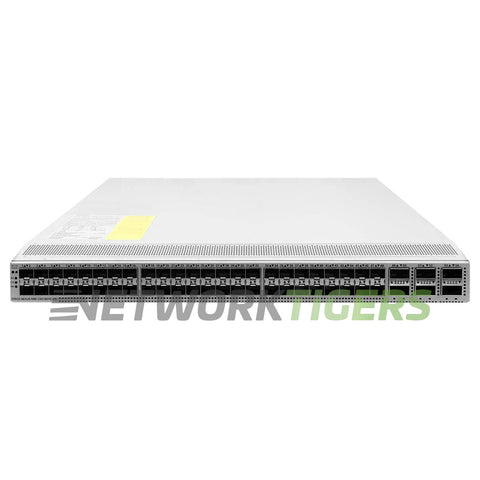

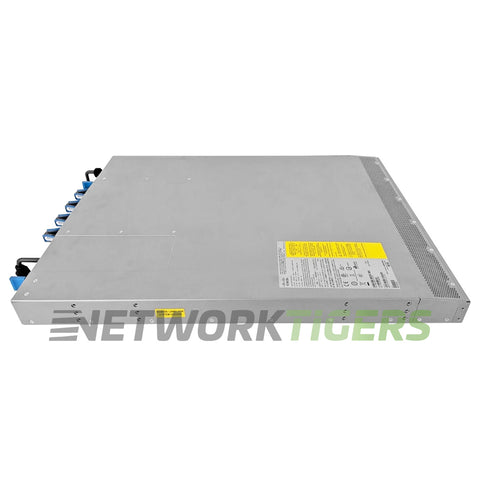

Cisco N9K-C93180YC-EX 48x 25GB SFP+ 6x 100GB QSFP28 Back-to-Front Airflow Switch

Cisco N9K-C93180YC-EX 48x 25GB SFP+ 6x 100GB QSFP28 Back-to-Front Airflow Switch

$ 1,589.99
$ 1,533.99
9 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-6761
UPC: 882658915895

Overview

The Cisco N9K-C93180YC-EX is a high-performance switch designed for data center deployments. Its 48x 25GB SFP+ ports and 6x 100GB QSFP28 ports provide ample connectivity options to meet the demands of modern networks.

Featuring a switching capacity of 3.6 Tbps and a forwarding rate of up to 850 Mpps, this switch can easily handle heavy traffic loads. Its MAC Address Table Size is impressive, with at least a million entries (512,000), ensuring efficient packet routing.

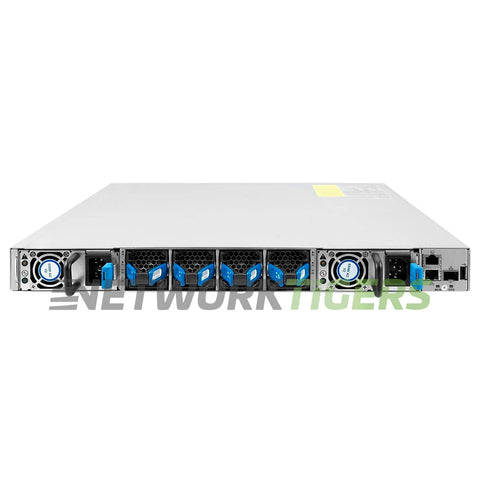

One notable feature of the N9K-C93180YC-EX is its back-to-front airflow design, which promotes better cooling efficiency in data centers where hot aisle/cold aisle configurations are implemented.

Cisco Nexus N9K-C93180YC-EX: Nexus 9K Fixed with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28. Back-to-Front Airflow (Forward Airflow / Port Side Exhaust).


Specifications

  • Network Ports : 48x 25 Gigabit Ethernet SFP+ (10/25)
  • Uplink Ports : 6x 100 Gigabit Ethernet QSFP28 (40/100)
  • Management Ports : 1x RJ45 Management, 1x 10G SFP+, 1x USB Type A, 1x Serial (RS-232)
  • AirFlow Direction : Back-to-Front Airflow (Forward Airflow / Port Side Exhaust)
  • Fan Module Options : 4x NXA-FAN-30CFM-F Included - Back-to-Front Airflow (Forward Airflow / Port Side Exhaust)
  • Power Supplies Included : 2x NXA-PAC-650W-PE PSU's Included
  • Power Supply Options : Other PSU options are - NXA-PAC-650W-PI (F-B Airflow), NXA-PDC-930W-PI (DC F-B), NXA-PDC-930W-PE (DC B-F), N9K-PUV-1200W (Bi-Directional)
  • Switching Capacity : 3.6 Tbps
  • Forwarding Rate : 850 Mpps
  • MAC Address Table Size : 512,000
  • Latency : less than 1 microsecond
  • DRAM and Flash : RAM 16 GB
  • Model Number : N9K-C93180YC-EX
  • Part Number : N9K-C93180YC-EX, N9K-C93180YC-EX=, N9K-C93180YC-EX-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco N9K-C93180YC-EX 48x 25GB SFP+ 6x 100GB QSFP28 Back-to-Front Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Brackets/Rails Not Included
