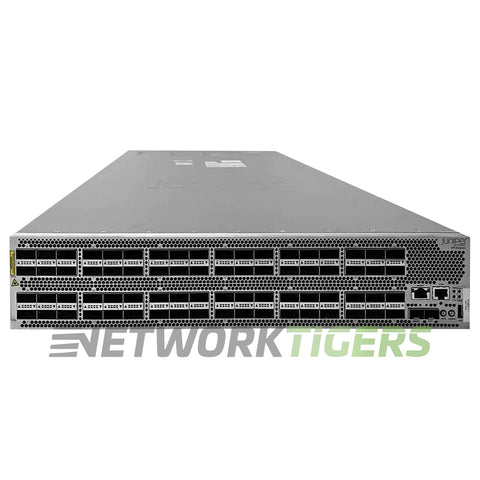

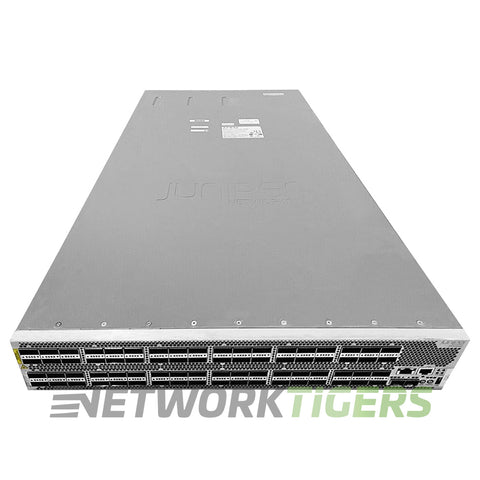

NEW Juniper PTX1K-72Q-DC PTX1000 24x 100 Gigabit Ethernet QSFP28 DC PSU Router
New

NEW Juniper PTX1K-72Q-DC PTX1000 24x 100 Gigabit Ethernet QSFP28 DC PSU Router

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3726

Overview

The NEW Juniper PTX1K-72Q-DC router boasts 24x 100 Gigabit Ethernet QSFP28 uplink ports, providing high-speed connectivity for data transmission. With a DRAM of 32 Gb SDRAM and flash latency as low as 2.5 μs within the Packet Forwarding Engine (PFE), this router ensures efficient processing of network traffic.

It offers a forwarding capacity of up to 2 Bpps and system throughput reaching speeds of up to 3 Tbps, making it suitable for demanding networking environments where speed is crucial. The Juniper PTX1K-72Q-DC is designed with performance in mind and can handle large volumes of data without compromising on reliability or efficiency, making it an excellent choice for businesses looking to enhance their network infrastructure capabilities.

NEW Juniper PTX1K-72Q-DC PTX1000 24x 100 Gigabit Ethernet QSFP28 DC PSU Router


Specifications

  • Uplink Ports : 24x 100 Gigabit Ethernet QSFP28

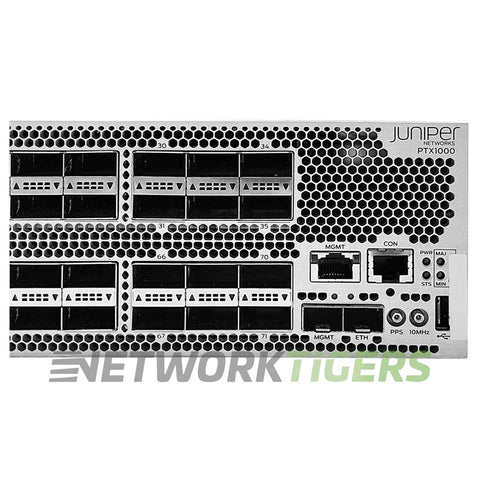

  • Management Ports : 1x RJ45 Console, 1x USB, 1x Gigabit Ethernet Management RJ45
  • SSD : 64 GBx2
  • DRAM : 32 Gb SDRAM
  • Latency : 2.5 μs within Packet Forwarding Engine (PFE), 5 μs between PFEs
  • Power Supplies : 4x 1600W DC PSU's included
  • Forwarding Capacity : Up to 2 Bpps
  • System Throughput : 3 Tbps
  • CPU : Intel Quad Core Ivy Bridge 2.5 GHz CPU
  • Rack Mounts : Included (2-RU)
  • Model Number : PTX1K-72Q-DC
  • Part Number : PTX1K-72Q-DC
  • Condition : New


Included

  • One (1) New Juniper PTX1K-72Q-DC PTX1000 Series 24x 100 Gigabit Ethernet QSFP28 DC PSU Router as described above
