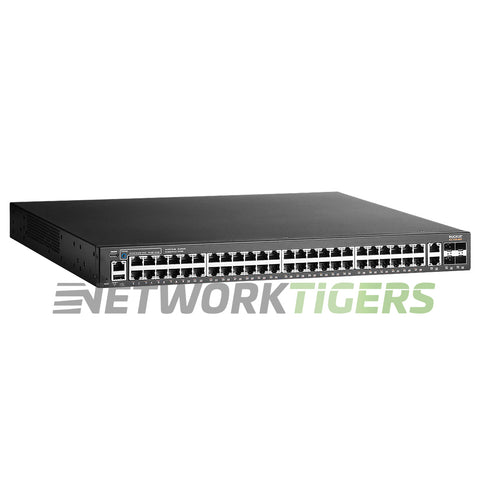

NEW Ruckus ICX7150-48PF-2X10G Brocade ICX 7150 48x 1GB PoE+ RJ45 2x SFP+ Switch
New

NEW Ruckus ICX7150-48PF-2X10G Brocade ICX 7150 48x 1GB PoE+ RJ45 2x SFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-7944

Overview

The Ruckus ICX7150-48PF-2X10G Brocade switch is an excellent choice for networks that require reliable and high-performance connectivity. Its 48x 1GB PoE+ RJ45 ports and 2x SFP+ ports offer great flexibility in connecting various devices.

One of the standout features of this switch is its impressive power over Ethernet (PoE) budget of up to 740W, which provides ample power supply for numerous connected devices. It boasts a switching capacity of up to 180 Gbps, ensuring smooth data transmission even during peak network traffic.

With a forwarding rate of 134 Mpps (million packets per second), this switch can handle heavy workloads without compromising performance. Its MAC Address Table Size supports up to 16,384 maximum MAC addresses, ideal for large-scale deployments or growing networks.

Ruckus ICX 7150 Switch: 48x 10/100/1000 Mbps PoE+ ports, 2x 1 GbE RJ45 uplink-ports, 2x 1 GbE SFP and 2x 10 GbE SFP+ stacking/uplink-ports upgradable to 4x 10 GbE SFP+ with license, 740 W PoE budget, basic Layer 3 (static routing and RIP).


Specifications

  • Network Ports : 48x Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 2x Gigabit Ethernet RJ45 Uplink, 2x 1G SFP, 2x 10G SFP+ (upgradable to 4×10 GbE SFP+ with license)
  • Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x USB Type C, 1x USB (for external file storage)
  • Aggregated stacking bandwidth (data rate, full duplex) : 480 Gbps
  • AirFlow Direction : Side to Back Airflow
  • Power Supplies Included : 1x Internal AC Power Supply
  • PoE Budget : 740W
  • Switching Capacity : 180 Gbps
  • Forwarding Rate : 134 Mpps
  • Maximum MAC Addresses : 16,384
  • : Included (1-RU)
  • Model Number : ICX7150-48PF-2X10G
  • Part Number : ICX7150-48PF-2X10G
  • Condition : New


Included

  • One (1) New Ruckus ICX7150-48PF-2X10G Brocade ICX 7150 48x GE PoE+ RJ45 2x SFP+ Switch as described above
