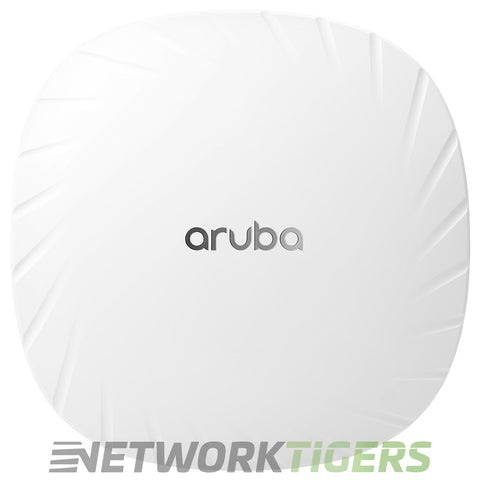

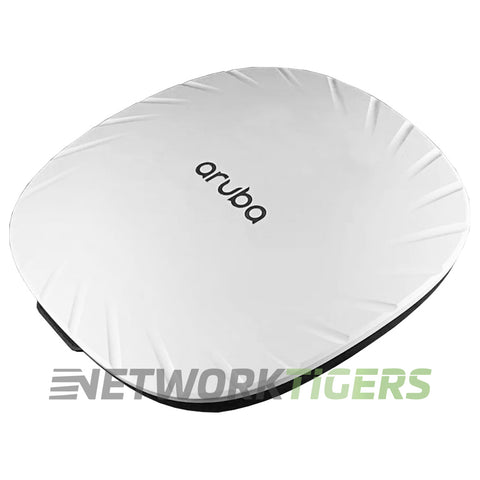

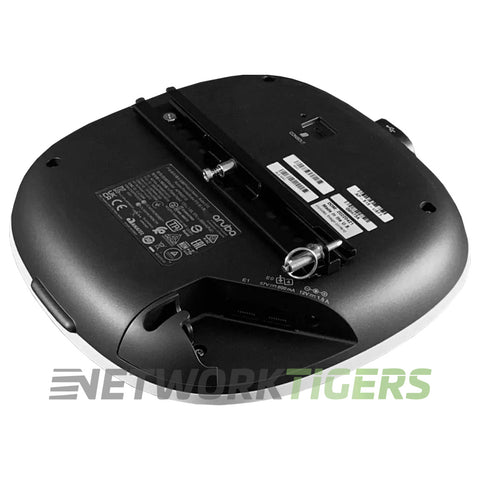

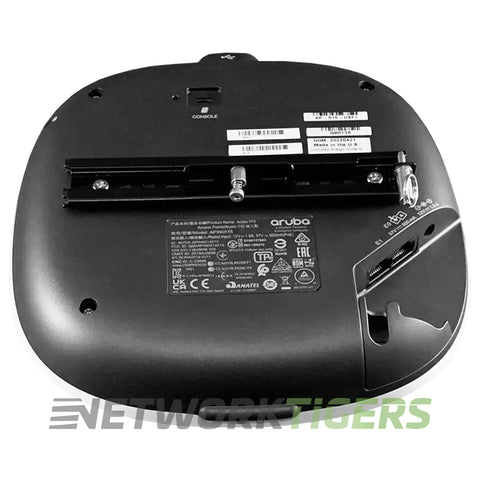

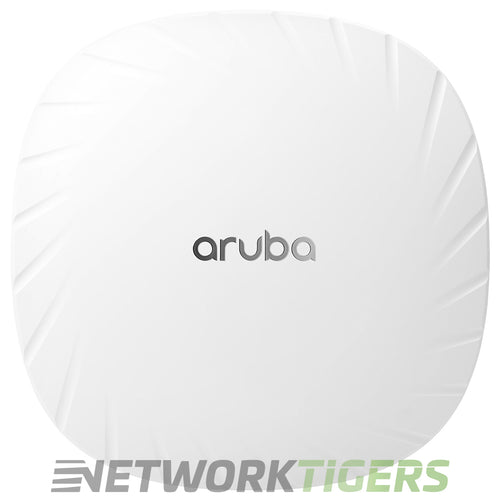

Experience the future of wireless networking with the HPE Aruba Q9H73A AP-515 (US) Dual Radio 802.11ax WiFi 6 access point. With dual-band support at both 2.4 GHz and 5 GHz frequencies, this TAA-compliant WAP ensures seamless performance for all your wireless devices.
The HPE Aruba Q9H73A AP-515 (US) Dual Radio 802.11ax WiFi 6 MU-MIMO OFDMA TAA WAP operates on frequencies of 2.4 GHz and 5GHz, supporting IEEE data link protocols including 802.11a, ac, b, g, n.
Aruba Q9H73A: Aruba AP-515 (US) TAA Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP
- Wi-Fi Standard : 802.11ax (Wi-Fi 6), MU-MIMO, OFDMA
- Managed By : Aruba Central / Aruba Mobility Controller
- Suggested Use : Indoor, campus, high density environments
- Region : United States (TAA)
- Radios : Dual Radio, 5GHz 802.11ax 4x4 MIMO & 2.4GHz 802.11ax 2x2 MIMO, plus Bluetooth 5 and Zigbee (802.15.4) radio
- Spatial Streams per Radio : 5GHz 4SS / 2.4GHz 2SS
- Maximum Data Rate : 2.69 Gbps aggregate (574 Mbps 2.4GHz + 4.8 Gbps 5GHz max)
- Bluetooth / IoT Radios : Bluetooth 5 and Zigbee (802.15.4)
- PoE Standard : 802.3af (class 3) / 802.3at (class 4) / 802.3bt (class 5)
- DC Power Input : 12V DC nominal ±5% (2.1/5.5mm center-positive jack)
- Uplink Ports : 1x 100/1000/2500BASE-T SmartRate RJ-45 (E0 PoE) and 1x 10/100/1000BASE-T RJ-45 (E1)
- Other Ports : 1x USB 2.0 Type-A
- Antenna Type : Integrated dual-band downtilt omni-directional
- Antenna Ports : N/A (integrated)
- Antenna Options : N/A (integrated antennas, not removable)
- Mounting Options : Ceiling mount via pre-installed bracket, optional mount kits sold separately
- Mounts Included : Pre-installed mounting bracket only
- Model Number : Q9H73A
- Part Number : Q9H73A, AP-515, AP-515-US, AP-515-US-TAA
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-515 Q9H73A Wi-Fi 6 802.11ax Internal Antenna (TAA) Wireless AP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
- Wall Mount Bracket Not Included
