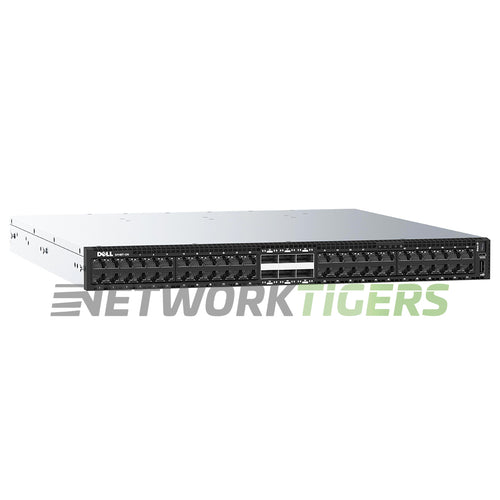

NEW Dell S4148T-ON-RA 48x 10GB Copper 2x 40GB QSFP+ 4x QSFP28 B-F OS10 Switch
New

NEW Dell S4148T-ON-RA 48x 10GB Copper 2x 40GB QSFP+ 4x QSFP28 B-F OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-8125
UPC: 011110566591

Overview

The Dell S4148T-ON-RA Switch offers high-performance networking with 48x 10GB Copper ports and 2x 40GB QSFP+ uplinks, along with a PoE budget for powering devices. With a switching capacity of 1.76 Tbps and a forwarding rate of 1320 Mpps, this switch can handle heavy workloads efficiently.

It has a MAC address table size of up to 272,000 entries and low latency at just 800 nanoseconds - making it suitable for demanding network environments. It is an ideal solution for businesses looking to upgrade their network infrastructure.

Dell S4148T-ON: 48x 10GBASE-T, 2x QSFP+, 4x 100GbE QSFP28, 2x AC PSU, 4x Fan module, PSU to I/O Panel Airflow. OS10 is included.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet RJ45
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+, 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Console Management (RS232), 1x USB, 1x Mini USB
  • Switch Version : OS10 is included
  • AirFlow Direction : Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
  • Fan Module Options : 4x Fan Modules Included
  • Power Supplies Included : 2x AC PSU's Included
  • Switching Capacity : 1.76 Tbps
  • Forwarding Rate : 1320 Mpps
  • MAC Address Table Size : 272,000
  • Latency : 800 nanoseconds
  • Alternative Dell Part Numbers : 210-ALSV, S4148T-ON RA, S4148T-ON-RA
  • Model Number : S4148T-ON-RA
  • Part Number : S4148T-ON-RA, 210-ALSV, S4148T-ON RA
  • Condition : New


Included

  • One (1) NEW Dell S4148T-ON-RA 48x 10GB Copper 2x 40GB QSFP+ 4x QSFP28 B-F OS10 Switch as described above
