NEW Cisco WS-C3850-24P-L 24x 1GB PoE+ RJ-45 1x Free Module Slot Switch
New

NEW Cisco WS-C3850-24P-L 24x 1GB PoE+ RJ-45 1x Free Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1702
UPC: 882658547980

Overview

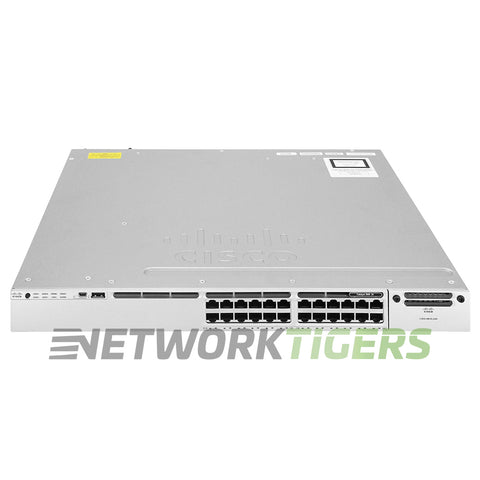

The Cisco WS-C3850-24P-L is a powerful switch for small to medium-sized networks. With 24 Gigabit Ethernet ports, all supporting Power over Ethernet Plus (PoE+), this switch can provide data and power to connected devices such as IP phones and security cameras.

One standout feature of the WS-C3850-24P-L is its modular design - it comes with one free module slot, allowing you to customize the functionality of your network by adding additional modules like fiber uplink or stacking options.

With a PoE budget of 435W (with an optional upgrade available for more power) and a switching capacity of 92 Gbps, this switch can handle high-density traffic without reducing performance. The forwarding rate is also impressive at 68.4 Mpps.

The MAC address table size supports up to 32,000 entries, ensuring efficient handling of large networks. The Cisco IOS software provides advanced features, including extensive redundancy protocols, giving businesses peace of mind.

Cisco Catalyst WS-C3850-24P-L: Stackable 24x 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU. Lan Base Version.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45 (802.3at, 25.5W per port maximum)
  • Uplink Ports : Through the use Expansion Module - See "Module Slots and Options"
  • Management Ports : 1x USB Type A, 1x Console Mini-USB, 1x RS-232 RJ-45, 1x Gigabit Ethernet Management
  • Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors - Cables sold separately
  • Stacking Options : Stacking bandwidth is 480 Gbps
  • Stacking Cable Options : CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise)
  • Module Slots : 1x Expansion Module Slots - Modules are not included
  • Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+)
  • Switch Version : LAN Base Version
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 3x C3850-FAN-T1 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-715WAC 715W AC PSU Included - 2x Slots (Dual Capable)
  • Power Supply Options : PWR-C1-715WAC, PWR-C1-1100WAC - DC Power available using PWR-C1-440WDC.
  • PoE Budget : 435W (with 1x 715WAC Power)
  • Switching Capacity : 92 Gbps
  • Forwarding Rate : 68.4 Mpps
  • MAC Address Table Size : 32,000
  • Model Number : WS-C3850-24P-L
  • Part Number : WS-C3850-24P-L, WS-C3850-24P-L=, WS-C3850-24P-L-WS
  • Condition : New


Included

  • One (1) NEW Cisco WS-C3850-24P-L 24x 1GB PoE+ RJ-45 1x Free Module Slot Switch Used as described above
