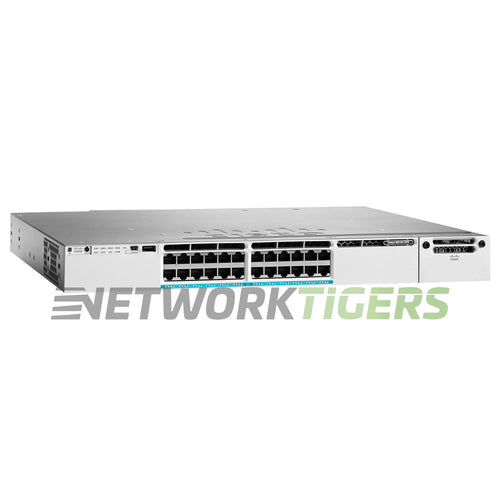

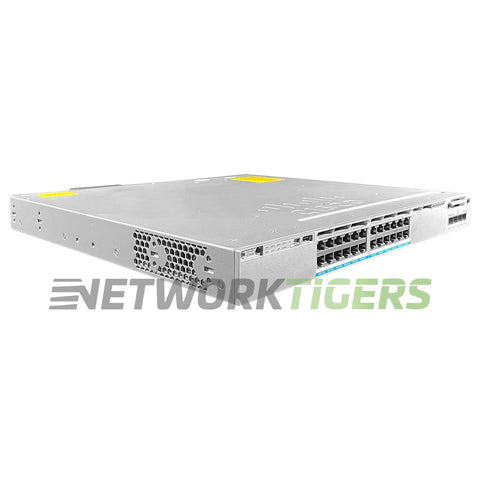

The Cisco WS-C3850-24U-E is a 24-port Gigabit UPoE switch from the Catalyst 3850 Series. It provides 24 Gigabit RJ45 ports with UPoE, up to 60 W per port, and with the included 1100 W power supply the switch delivers an 800 W PoE budget. It runs the IP Services version, with full Layer 3 routing such as OSPF, EIGRP and BGP.

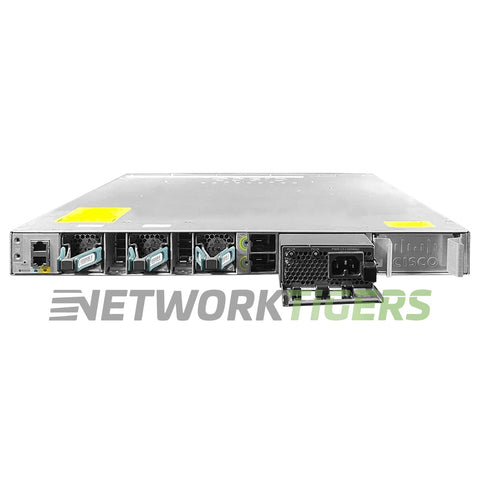

The switch has 4 GB of DRAM and 2 GB of flash. Up to nine Catalyst 3850 switches can join one StackWise-480 stack with 480 Gbps of stack bandwidth, managed as a single switch, and StackPower lets stacked switches share their power supplies. The 1RU chassis ships with rack mount brackets and three FAN-T1 fan modules, and uplinks come from an optional network module in the front slot, which is not included.
For uplinks, the Cisco C3850-NM-2-10G module adds two 10 Gigabit SFP+ ports. A second Cisco PWR-C1-1100WAC power supply gives redundancy and more PoE headroom, and the NEW Cisco STACK-T1-50CM cable joins it to a stack. For a different software version, see the LAN Base Cisco WS-C3850-24U-L or the IP Base Cisco WS-C3850-24U-S.
This seller refurbished switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 1 Gigabit Ethernet UPOE RJ45
- Uplink Ports : Through an optional network module - see Module Options
- Management Ports : 1x USB Type A, 1x Console Mini USB Type B, 1x RS-232 RJ45 Management, 1x Gigabit Ethernet Management
- Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors
- Stacking Cable Options : CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise) - Cables sold separately
- Module Slots : 1x Network Module Slot - Modules are not included
- Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+) - Not Included
- Switch Version : IP Services Version
- AirFlow Direction : Front-to-Back (Port-Side Intake)
- Fan Module Options : 3x FAN-T1 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC - 1100W AC Power Supply Included - 2x Slots (Dual Capable) - 2nd Power Supply Sold Separately
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC - DC Power available using PWR-C1-440WDC.
- PoE Budget : 800W
- Switching Capacity : 92 Gbps
- Forwarding Rate : 68.4 Mpps
- MAC Address Table Size : 32,000
- DRAM and Flash : 4 GB DRAM, 2 GB Flash
- Model Number : WS-C3850-24U-E
- Part Number : WS-C3850-24U-E, WS-C3850-24U-E=, WS-C3850-24U-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco WS-C3850-24U-E 24x 1GB UPoE RJ45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
