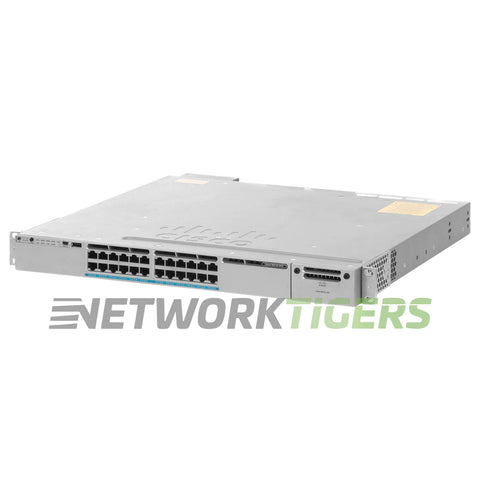

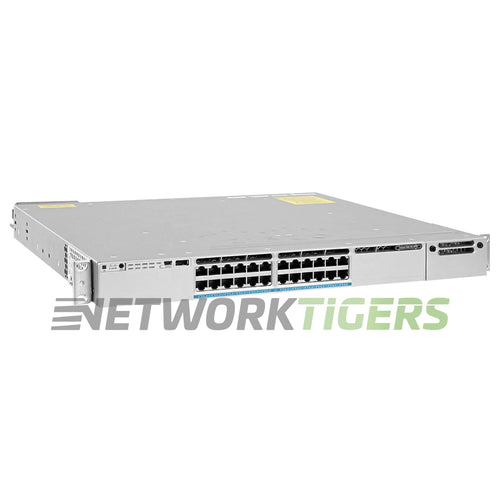

Cisco WS-C3850-24XUW-S

Cisco WS-C3850-24XUW-S 24x MultiGB UPoE RJ-45 1x Slot Manages 5x APs Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-4661
UPC: 882658857058

Overview

The Cisco WS-C3850-24XUW-S is a powerful network switch that manages up to five access points (APs). This switch provides high-speed device connectivity with its 24x MultiGB UPoE RJ-45 ports. It boasts a PoE budget of 580 watts, ensuring sufficient power supply.

Impressively, the switching capacity stands at an impressive 640 Gbps with a forwarding rate of 500 Mpps. This makes it suitable for handling heavy loads and demanding applications without compromising performance.

Featuring a MAC Address Table Size of up to 32,000 entries and supporting VLAN IDs totaling up to 4,000 networks enables effective segregation and organization within large-scale deployments or complex environments while maintaining optimal data throughput speeds.

Cisco Catalyst WS-C3850-24XUW-S: Catalyst 3850 24x Ports UPOE with 24x 100Mbps/1/2.5/5/10 Gbps and Manages 5x access point - (Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply 1RU).


Specifications

  • Network Ports : 24x Multi Gigabit Ethernet (100Mbps/1/2.5/5/10 Gbps) UPoE RJ-45 - Manages 5x Access Points
  • Uplink Ports : Through the use Expansion Module - See "Module Slots and Options"
  • Management Ports : 1x Console - RJ-45, 1x Gigabit Ethernet Management, 1x Mini-USB Console (Type B), 1x USB (Type A)
  • Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors - Cables sold separately - CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise) | Stacking bandwidth is 480 Gbps
  • Module Slots and Options : 1x Expansion Module Slots - Modules are not included
  • Expansion Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+), C3850-NM-4-10G (4x 10GB SFP+), C3850-NM-8-10G (8x 10GB SFP+), C3850-NM-2-40G (2x 40GB QSFP+)
  • Fan Modules AirFlow Direction : 3x C3850-FAN-T1 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-1100WAC Power Supply Included - Dual Slots - Options are - 2x PWR-C1-1100WAC or 1x PWR-C1-1100WAC and 1x PWR-C1-715WAC
  • PoE Budget : 580W
  • Switching Capacity : 640 Gbps
  • Forwarding Rate : 500 Mpps (80B packets)
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • VLAN ID's : 4,000
  • Model Number : WS-C3850-24XUW-S
  • Part Number : WS-C3850-24XUW-S, WS-C3850-24XUW-S=, WS-C3850-24XUW-S-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco WS-C3850-24XUW-S Catalyst 3850 Series 24x Multi Gigabit UPoE RJ-45 1x Expansion Module Slot Manages 5x APs Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Network Modules Not Included
