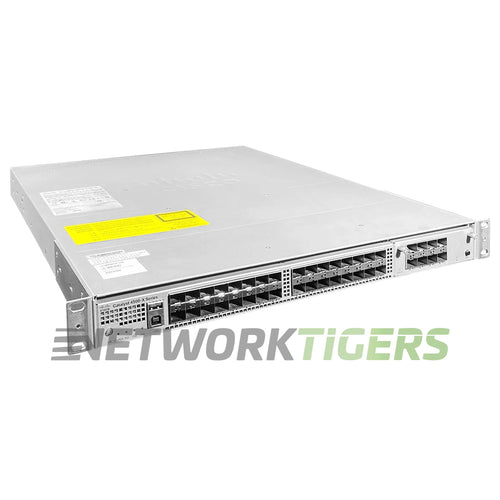

The Cisco WS-C4500X-40X-ES is a high-performance switch designed for enterprise networks. It features 40x 10GB SFP+ ports and supports front-to-back airflow, making it suitable for data centers or rack-mounted installations.
This switch includes one module slot that comes with the C4KX-NM-8SFP+ module pre-installed. The C4KX-NM-S8P+ allows for additional connectivity options using its eight SFP+ slots.
With a switching capacity of 800 Gbps and a forwarding rate of 245 Mpps, this Cisco switch provides fast and efficient performance even in demanding network environments.
Cisco WS-C4500X-40X-ES: Catalyst 4500-X 40 Port 10GE, Front-to-Back Cooling, 8-Port Uplink Module included; 5 x C4KX-FAN-R - Front-to-Back Fan included; Dual Capable Power Supply.
- Network Ports : 32x 1/10 Gigabit Ethernet SFP+
- Uplink Ports : 8x 1/10 Gigabit Ethernet SFP+ (via C4KX-NM-8SFP+ expansion module, included)
- Management Ports : 1x 10/100/1000 Mbps Ethernet RJ-45, 1x Console Port (RJ-45), 1x USB Type-A Port (up to 4GB)
- Module Slots : 1x Module Slot - 1x C4KX-NM-8SFP+ Included (8x 10 Gigabit Ethernet SFP+ Network Module)
- Module Options : C4KX-NM-8SFP+ is the only available module for this switch
- Switch Version : Enterprise Services
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 5x Field-replaceable fans (C4KX-FAN-R, Front-to-Back). N+1 redundancy - no performance impact with single fan failure
- Power Supplies Included : 1x AC Power Supply C4KX-PWR-750AC-R Included
- Power Supply Options : 2x Slots - Optional 2nd PSU C4KX-PWR-750AC-R - C4KX-PWR-750AC-F for Reversed / Back-to Front Airflow
- Switching Capacity : 800 Gbps
- Forwarding Rate : 245 Mpps
- MAC Address Table Size : 55,000
- DRAM and Flash : 4 GB SRAM DDR-II, 2 GB NVRAM, 32 MB shared port buffer
- Model Number : WS-C4500X-40X-ES
- Part Number : WS-C4500X-40X-ES, WS-C4500X-40X-ES=, WS-C4500X-40X-ES-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco WS-C4500X-40X-ES 40x 10GB SFP+ Front-to-Back Airflow Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Five (5) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- One (1) 1 x Uplink Module Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
