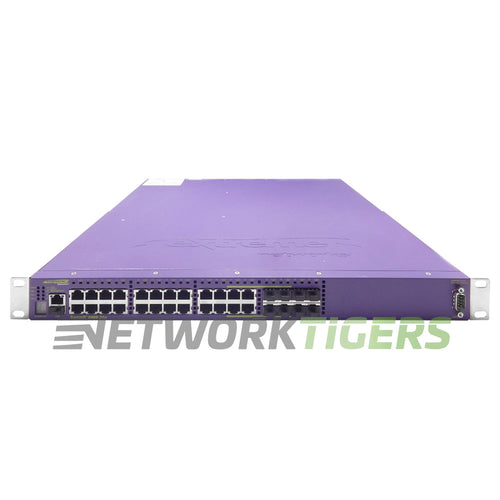

The Extreme 16403 X460-24p is a PoE+ switch from Extreme Networks. This model features a compact form factor with 24 Gigabit RJ45 ports supporting Power over Ethernet (PoE+), as well as eight SFP uplink ports for fiber connectivity.
With an expansion module slot available, users have the flexibility to add various modules such as the XGM3-2SF or XGM3S-2xf/module for additional 10 Gigabit Ethernet connections. The switch has a high switching capacity of 176 Gbps and can handle forwarding rates of up to 130.9 Mpps, making it suitable for medium-sized networks requiring reliable performance and scalability. With its versatile interface options and expandability, this switch offers businesses a solid foundation for building their network infrastructure efficiently.
Extreme 16403: X460-24p - 24 10/100/1000BASE-T PoE, 8 100/1000BASE-X unpopulated SFP (4 SFP ports shared with 10/100/1000BASE-T ports), slot for optional XGM3 module(s), slot for optional stacking module, AC PoE PSU with one unpopulated PSU slot, Fan module, ExtremeXOS Edge.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 8x 1 Gigabit Ethernet SFP (4 SFP ports shared with 10/100/1000BASE-T ports)
- Management Ports : 1x DB-9 Serial, 1x Fast Ethernet RJ45, 1x USB
- Stacking Ports : 1x Stacking Module Slot - Not Included
- Stacking Options : Options for Slot B are 16419 (SummitStack 40 Gbps), 16420 (SummitStack-V80 80Gbps high-speed stacking or SummitStack-V longer distance stacking)
- Module Slots : 1x Expansion Module Slot - Expansion Modules not included
- Module Options : Options for Slot A are - 16117 (XGM3-2SF 10 Gigabit SFP+), 16119 (XGM3S-2xf/module 2 x 10GbE XFP), 16126 (XGM3S-2sf/module 2 x 10GbE SFP+)
- Switch Version : Options for Slot A are - 16117 (XGM3-2SF 10 Gigabit SFP+), 16119 (XGM3S-2xf/module 2 x 10GbE XFP), 16126 (XGM3S-2sf/module 2 x 10GbE SFP+)
- Fan Module Options : 1x 10935 Summit X460 Fan Module Included.
- Power Supplies Included : 1x 10931 750W AC PoE PSU Included - 2x Slots - 2nd Power Supply ordered separately.
- PoE Budget : 380W with 1x AC PSU, 760W with 2x AC PSU
- Switching Capacity : 176 Gbps
- Forwarding Rate : 130.9 Mpps
- MAC Address Table Size : 32000
- Model Number : 16403
- Part Number : 16403, X460-24p
- Condition : Seller refurbished
- One (1) Seller Refurbished Extreme 16403 X460-24p 24x 1GB PoE+ RJ45 8x 1GB SFP 2x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
