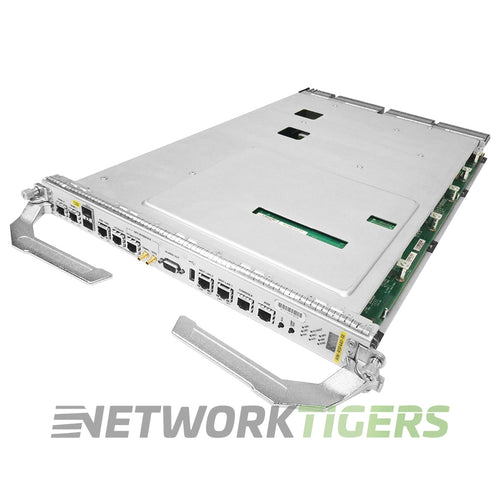

The Cisco A9K-RSP440-SE is the Route Switch Processor 440, Service Edge optimized, for the Cisco ASR 9006, ASR 9010 and ASR 9904. It takes one RSP slot, or two for a redundant pair.
With a single RSP the system delivers 220 Gbps per slot; with dual RSPs, 440 Gbps per slot. The -SE version carries 12 GB of ECC DRAM, against 6 GB on the -TR, along with two 16-GB SSDs and 8 GB of embedded USB flash. Connections include two 100/1000BASE-T RJ45 management ports, console and auxiliary ports, two 10GE SFP+ virtualization cluster ports, BITS/SSU, an IEEE 1588 RJ45 port, GPS ToD/1-pps/10-MHz ports and USB 2.0. Cisco rates power at 170 W typical and 450 W maximum, and the RSP weighs 20 lb. It requires Cisco IOS XR 4.2.0 or later.
This listing ships one new route switch processor.
If transport scale is enough, see the A9K-RSP440-TR route switch processor with 6 GB of DRAM, or the A9K-RSP440-LT lower capacity route switch processor. For the RSP880, see the A9K-RSP880-SE route switch processor. This RSP is also listed A9K-RSP440-SE seller refurbished.
This Cisco A9K-RSP440-SE route switch processor is new open box and covered by the NetworkTigers one-year warranty.
- Module Type : Route Switch Processor
- Uplink Ports : 2x 10GB SFP+ virtualization cluster ports
- Management Ports : 1 x RJ45 console port; 2 x 100/1000 BASE-T (RJ45) LAN management ports; 1 x RJ45 AUX port; 1 x USB 2.0 (Type A) port
- Min Firmware Required : Cisco IOS XR Software Release 4.2.0 onwards
- Hard Drive : SSD - 16 GB x 2
- DRAM : 12 GB
- Flash : 8 GB
- Designed For : ASR 9000 Series
- Model Number : A9K-RSP440-SE
- Part Number : A9K-RSP440-SE, A9K-RSP440-SE=, A9K-RSP440-SE-WS
- Condition : New
- One (1) NEW Cisco A9K-RSP440-SE ASR 9000 440 Service Edge Router Route Switch Processor Used as described above
