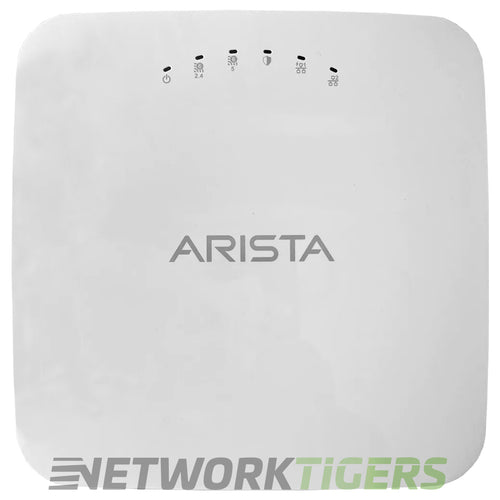

The Arista C-230 is a tri-radio Wi-Fi 6 (802.11ax) access point. It has a 4x4, 4 radio on 5GHz, a 2x2, 2 radio on 2.4GHz, a 2x2 dual-band scan radio and a Bluetooth Low Energy radio. Arista rates the 5GHz radio at up to 4.8 Gbps and the 2.4GHz radio at up to 0.6 Gbps.
The dedicated scan radio handles wireless intrusion prevention (WIPS) and client connectivity tests without taking the serving radios off channel.
Wired ports are LAN1 at up to 5GbE (100M, 1G, 2.5G or 5G) with PoE, and LAN2 at 1GbE. Full function needs PoE++; on PoE+ the 5GHz radio drops to 2x2 and the USB port turns off. Power draw is 26W maximum and 22.8W average. LAN1 is MACsec capable pending future software.
Management is through Arista CloudVision Wi-Fi, in the cloud or on premises. It requires CloudVision Wi-Fi licensing, which is not included. There is an RJ-45 console and a USB 2.0 port reserved for future use. The unit measures 8.1 x 8.1 x 1.8 inches, weighs 2.2 lb and mounts on walls or ceilings.
A new AP-C230 is also available.
This seller refurbished AP-C230 is tested, working, and covered by the NetworkTigers one-year warranty.
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Licensing : Requires a license to be configured and monitored - Licence is sold separately and can be purchased directly from Arista
- Suggested Use : Critical, high-density networks, large schools, large remote offices, auditoriums, meeting rooms, and enterprise campuses, indoor deployment
- Radios : 3x total, 1x 2.4GHz, 1x 5GHz, plus a dedicated 2x2 dual-band scanning radio for WIPS and RF analysis
- Spatial Streams per Radio : 2x streams on 2.4GHz using 2x2 by 2, 4x streams on 5GHz using 4x4 by 4, and 2x streams on the multipurpose scan radio, for 6x access streams total plus the scan radio
- Maximum Data Rate : 0.6 Gbps on 2.4GHz and up to 2.4 Gbps on 5GHz
- Bluetooth / IoT Radios : Integrated 2.4GHz Bluetooth Low Energy (BLE) radio
- PoE Standard : PoE+ required for full functionality, USB is disabled unless PoE+ is provided
- DC Power Input : 12V DC input, 5.5mm barrel connector, optional universal AC power supply available separately, part number PWR-AP-W4 (12VDC, 3.3A), not included
- Uplink Ports : 1x 5 Gigabit Ethernet (PoE+ compliant, MACsec capable via future update) RJ-45, and 1x 1 Gigabit Ethernet RJ-45
- Other Ports : 1x USB 2.0 port, Type A (reserved for future use), 1x Console port, RJ-45 (RS-232 serial, 115200 bps), plus a pinhole reset button
- Antenna Type : Integrated modular high efficiency PIFA antennas, 4x on 5GHz (peak gain 3.9dBi), 2x on 2.4GHz (peak gain 3dBi)
- Mounting Options : Wall and ceiling mounting supported, refer to Arista's separate Access Points Mounting Brackets Guide for specific kit part numbers
- Mounts Included : Mounting kits are sold separately
- Model Number : AP-C230
- Part Number : AP-C230
- Condition : Seller refurbished
- One (1) Seller refurbished Arista AP-C230 Wi-Fi 6 802.11ax Internal Omni Directional Antenna Indoor WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
- Wall Mount Bracket Not Included
