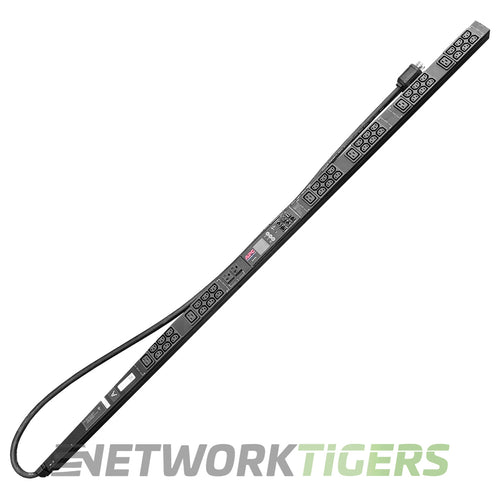

APC AP8861 by Schneider Electric is a metered ZeroU rack PDU with 36 x IEC 60320 C13, 6 x IEC 60320 C19, and 2 x NEMA 5-20R outlets. It uses a NEMA L21-20P input and supports 208 V three phase power distribution.
The unit provides 120 V and 208 V output with a 20 A input and 5700 VA load capacity, derated to 16 A per phase in North America. It mounts vertically in a rack to conserve U space and is suited for distributing power to mixed equipment using C13, C19, and NEMA connections. Input frequency is 50 / 60 Hz.
APC AP8861: 20A 36x IEC 60320 C13 6x IEC 60320 C19 2x NEMA 5-20R ZeroU 3Phase.
- Power Output Connections : 36x IEC 60320 C13 6x IEC 60320 C19 2x NEMA 5-20R
- Power Output Voltage : 120V, 208V
- Input Connection : 1x NEMA L21-20P
- Input Voltage : 208V 3PH
- Input Frequency : 50/60 Hz
- Input Amperage : 20A
- Load Capacity : 5700VA
- Regulatory Derated Input Current (North America) : 16A
- Cord Length : 6ft (1.8meters)
- Rack Mounts : Round Grommets
- Form Factor : Zero U
- Model Number : AP8861
- Part Number : AP8861
- Condition : Seller refurbished
- One (1) Seller Refurbished APC AP8861 Metered Rack 208V 20A 36x C13 6x C19 2x NEMA 5-20R ZeroU 3Phase PDU as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Rack Mount Brackets Not Included
