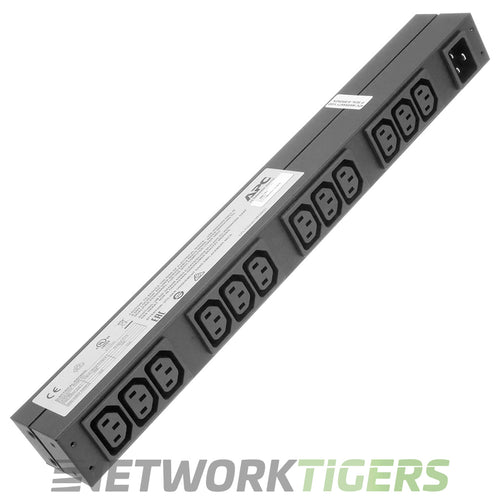

APC AP9565 by Schneider Electric is a 1U rackmount single phase PDU with an IEC 60320 C20 input and 12 IEC 60320 C13 power output connections. It supports 200 V, 208 V, or 230 V input at 50/60 Hz and distributes AC power from a 16 A source to multiple rack devices through C13 outlets.
The unit provides a load capacity of 3680 VA, delivering up to 3.7 kW at 230 V or 3.3 kW at 208 V. It is designed for rack power distribution to servers, storage systems, and network hardware that use IEC C13 power cords. The 1U horizontal form factor supports standard rack installation and centralizes power connections within a single rack space.
APC AP9565: APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord.
- Power Output Connections : 12x IEC 60320 C13
- Power Output Voltage : 208 V, 230 V
- Input Connection : IEC 60320 C20
- Input Voltage : 200 V, 208 V, 230 V
- Input Frequency : 50/60 Hz
- Input Amperage : 16 A
- Load Capacity : 3680 VA
- Cord Length : 2.49 m
- Form Factor : 1U
- Model Number : AP9565
- Part Number : AP9565
- Condition : Seller refurbished
- One (1) Seller refurbished APC AP9565 1U 1PH 3.7kW 230V 16A or 3.3kW 208V 16A x12 C13 PDU as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Rack Mount Brackets Not Included
