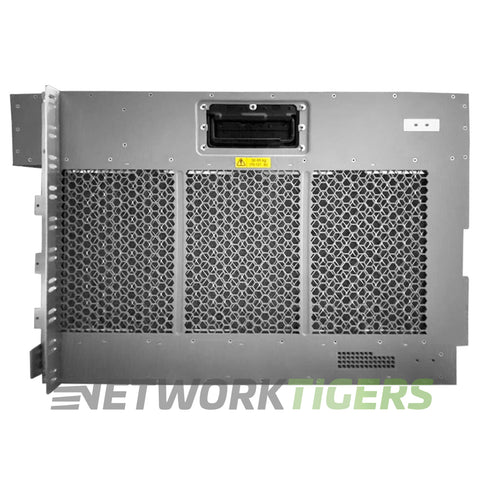

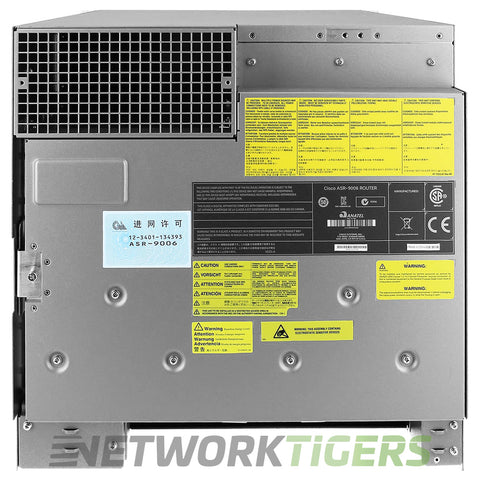

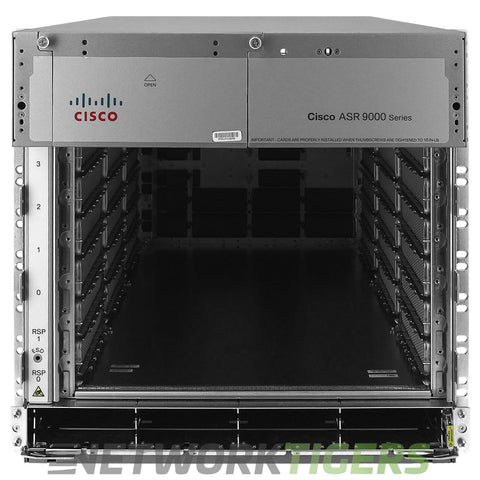

The Cisco ASR-9006-AC-V2 is the AC version of the ASR 9006 router chassis. It is 10 RU tall, with four line card slots and two RSP slots for dual redundant RSPs with integrated fabric.
Power runs through one PEM, AC or DC. The chassis takes 3 kW AC modules (PWR-3KW-AC-V2) or 2.1 kW DC modules (PWR-2KW-DC-V2), and Cisco does not support mixing AC and DC. AC input is 200-240 V, 50-60 Hz, 16 A maximum. Cooling comes from two fan trays with six high-efficiency fans each, and airflow runs right to back, or front to back with a baffle. Cisco lists the chassis with PEM at 89.55 lb and 17.5 x 17.38 x 29.05 in (H x W x D).
This listing ships one new open box ASR 9006 chassis; power modules are ordered separately.
For power, see the PWR-3KW-AC-V2 3000 W AC power module or the PWR-2KW-DC-V2 2100 W DC power module. For cooling, see the ASR-9006-FAN ASR 9006 fan tray. The A9K-RSP440-TR packet transport route switch processor fits the RSP slots, and line card options include the A9K-24X10GE-1G-TR 24-port dual-rate line card.
This Cisco ASR-9006-AC-V2 router chassis is new open box and covered by the NetworkTigers one-year warranty.
- RSP's : Dual redundant RSPs with integrated fabric in 2 slots
- Module Slots and Options : 4x Line Card Slots,
- Firmware Version : None Included.
- Power Supplies : None Included. Ordered Separately (Supports 3-kW AC or 2.1-kW DC power modules)
- Rack Mounts : Included (10-RU)
- Model Number : ASR-9006-AC-V2
- Part Number : ASR-9006-AC-V2, ASR-9006-AC-V2=, ASR-9006-AC-V2-WS
- Condition : New
- One (1) New Cisco ASR-9006-AC-V2 ASR 9000 Series 4x Line Card Slot w/ PEM Version 2 Router Chassis as described above
