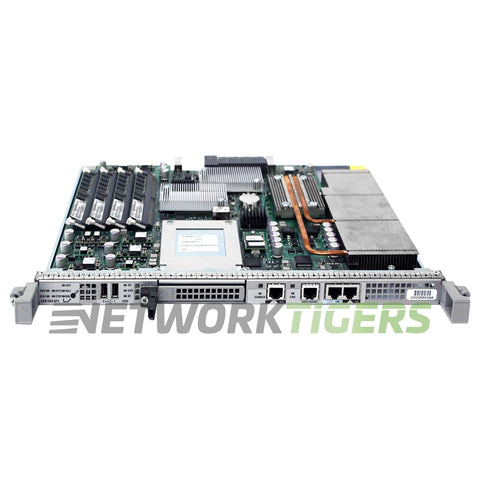

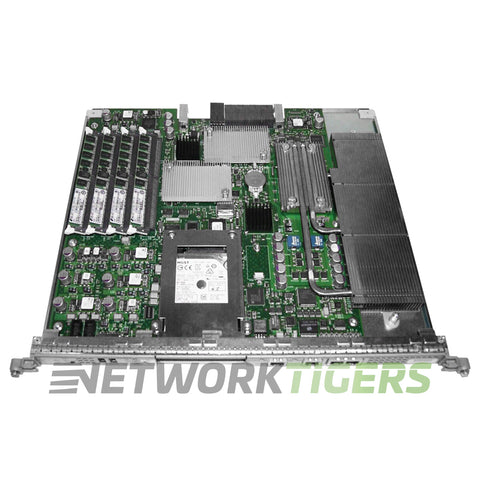

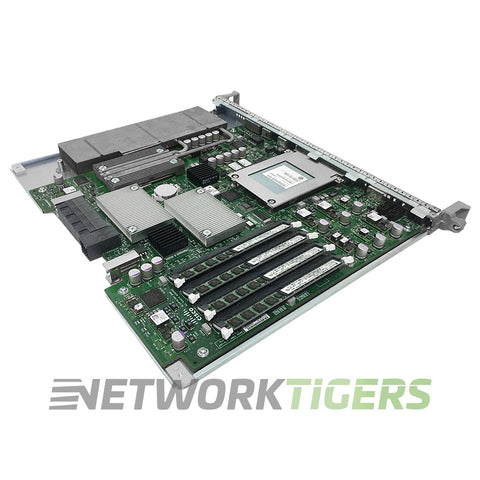

The Cisco ASR1000-RP2 is the second-generation route processor for the ASR 1000 Series, supported in the ASR 1004, ASR 1006, ASR 1006-X, ASR 1009-X and ASR 1013. Its memory sets how many routes Cisco rates the router for, and the ASR 1006 and larger chassis take two route processors for redundancy, while the ASR 1004 takes one.
Cisco specifies a dual-core 2.66 GHz CPU, 8 GB of DRAM by default with a 16 GB maximum, 2 GB of built-in bootflash, a 1 GB USB compact flash and an 80 GB hot-swappable hard drive. With 8 GB, Cisco rates it for up to 1 million IPv4 or 1 million IPv6 routes; with 16 GB, up to 4 million. Front-panel connections are a 10/100/1000 management Ethernet port, RJ45 console and auxiliary ports, an RJ48 BITS clock connector and two USB ports. The RP2 does not carry network traffic ports; those come from the line cards and SPAs.
This listing is a new open box route processor with 8 GB DRAM, as named in its Item Includes.
A seller refurbished ASR1000-RP2 route processor is also listed. For the ASR 1006-X, ASR 1009-X and ASR 1013, the ASR1000-RP3 quad-core route processor adds memory options up to 64 GB and is the route processor Cisco requires for the ESP100-X and ESP200-X.
This Cisco ASR1000-RP2 route processor is new open box and covered by the NetworkTigers one-year warranty.
- Module Type : Route Processor (RP)
- Management Ports : 1x 10/100/1000 Management Ethernet RJ45, 1x Console RJ45, 1x AUX RJ45, 1x BITS RJ48, 2x USB
- Compatible Devices : Cisco ASR1004, ASR1006, ASR1006-X, ASR1009-X, ASR1013
- Designed For : ASR 1000 Series
- Memory : 8 GB DRAM Installed
- Model Number : ASR1000-RP2
- Part Number : ASR1000-RP2, ASR1000-RP2=, ASR1000-RP2-WS
- Condition : New
- One (1) NEW Cisco ASR1000-RP2 ASR 1000 Series 8GB DRAM Route Processor 2 Router Module as described above
