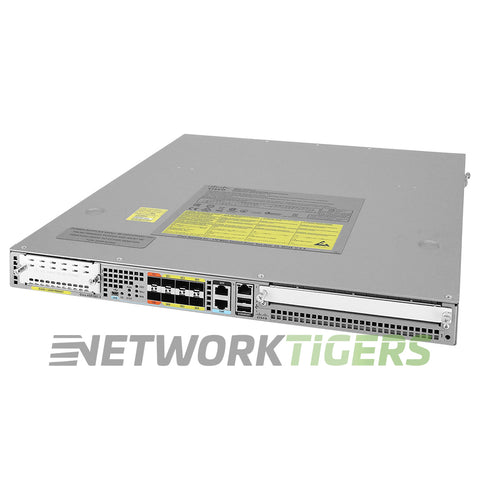

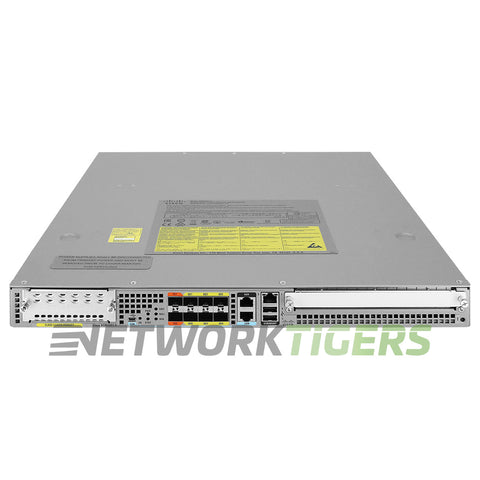

The Cisco ASR1001-X is the 1RU member of the ASR 1000 family, a compact WAN edge and aggregation router with the route processor, Embedded Services Processor (ESP) and SPA interface processor built into one chassis. It suits branch aggregation, internet edge and enterprise WAN headends where rack space is tight.
Every ASR 1001-X has six 1GB SFP ports and two 10GB SFP+ ports built in, one NIM bay and one half-height SPA bay for extra interfaces, and a dedicated crypto engine rated up to 8 Gbps. The ESP runs at 2.5 Gbps by default and Cisco raises it to 5, 10 or 20 Gbps through software-activated licenses, so the throughput a router delivers depends on the licenses on that unit. Memory is 8 GB DRAM in the base configuration, expandable to 16 GB, with 8 GB of embedded flash.

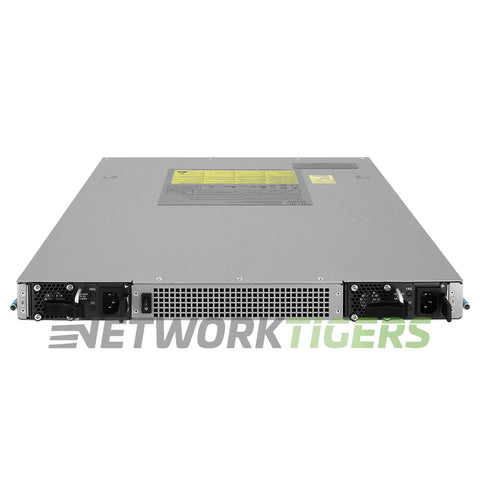

The chassis runs two hot-swappable power supplies, both AC or both DC, and cools front to back with four internal fans, so mount it with the port side facing the cold aisle.
A seller refurbished ASR1001-X is also listed. For DC sites, ASR1001-X-PWR-DC DC power supplies fit the same bays; Cisco does not support one AC and one DC supply in the same chassis.
This listing ships one new chassis, per its Item Includes; SFP modules and network modules are not included. This Cisco ASR 1001-X router is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 6x 1 Gigabit Ethernet SFP
- Uplink Ports : 2x 10 Gigabit Ethernet SFP+
- Management Ports : 1x Mini USB, 1x RJ45 RS-232, 2x USB Type A, 1x RJ45 Management, 1x RJ45 AUX
- Module Slots and Options : 1x NIM Slot, 1x Shared Port Adaptor Slot - Modules not included.
- DRAM : 8GB (installed) / 16 GB (max)
- Flash : 8GB - 1-GB USB flash memory support
- Power Supplies : 2x AC Power supplies by default - options sold separately of either AC or DC power supply (Note - A mix of one AC and one DC power supply is not supported)
- ESP Bandwidth : 2.5 to 20 Gbps
- Rack Mounts : Included (1-RU)
- Model Number : ASR1001-X
- Part Number : ASR1001-X, ASR1001-X=, ASR1001-X-WS
- Condition : New
- One (1) NEW Cisco ASR1001-X 6x 1GB SFP 2x 10GB SFP+ 1x NIM Slot 1x SPA Slot Router as described above
- SFP Modules Not Included
- Network Modules Not Included
