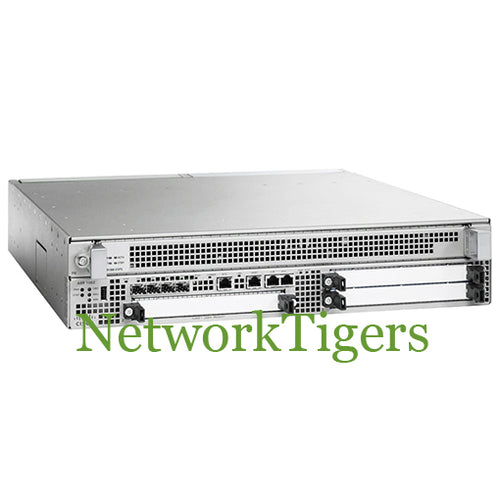

Cisco ASR1002-5G-SEC/K9 ASR 1002 VPN Firewall Security Bundle w/ ESP5

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-5302
UPC: 882658188671

Overview

The Cisco ASR1002-5G-SEC/K9 is a Cisco ordering bundle for the 2RU ASR 1002 router. Cisco names it the ASR 1002 VPN and Firewall Bundle: the chassis with the 5 Gbps ASR1000-ESP5 Embedded Services Processor and the IPsec VPN and firewall feature licenses in the original Cisco order. Licenses are tied to Cisco records, so confirm entitlement with Cisco before relying on them.

The chassis has four built-in 1GB SFP ports, three SPA slots on an integrated SIP10, an integrated RP1 route processor with 4GB DRAM and 8GB of eUSB flash, and one ESP slot. The ESP5 fits only the ASR 1002 and carries 1GB DRAM and a 64MB packet buffer; the slot also takes the ESP10. Management is through an RJ45 10/100/1000 Ethernet port plus console and auxiliary ports. The router runs two power supplies, both AC or both DC, and cools front to back.

This listing ships the router with the ESP5 installed, two power supplies, two power cords and a set of rack mount brackets; SPAs and SFP modules are not included.

The ASR1002-5G-VPN/K9 VPN bundle is the same hardware with the VPN-only bundle, and the ASR1002-10G-SEC/K9 with ESP10 doubles the ESP rating.

This seller refurbished Cisco ASR1002-5G-SEC/K9 router is tested, working, and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 4x 1GB SFP
  • Management Ports : 1x RJ45 10/100/1000 Management Ethernet, 1x RJ45 Console, 1x RJ45 AUX, 1x USB
  • Module Slots and Options : 3x half-height SPA slots (SPAs sold separately)
  • Power Supplies : 2x ASR1002-PWR-AC (2 power supply bays)
  • Performance : ESP - 1x ASR1000-ESP5 installed
  • Rack Mounts : Included (2RU)
  • Model Number : ASR1002-5G-SEC/K9
  • Part Number : ASR1002-5G-SEC/K9, ASR1002-5G-SEC/K9=, ASR1002-5G-SEC/K9-WS
  • Condition : Seller refurbished


Included

  • One (1) Refurbished Cisco ASR1002-5G-SEC/K9 ASR 1000 Series 1002 VPN Firewall Security w/ ESP5 Router as described above
  • Two (2) Power Supplies Included
  • Two (2) Power Cords Included
  • One (1) Set of Rackmount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • SPA Not Included
  • SFP Modules Not Included
