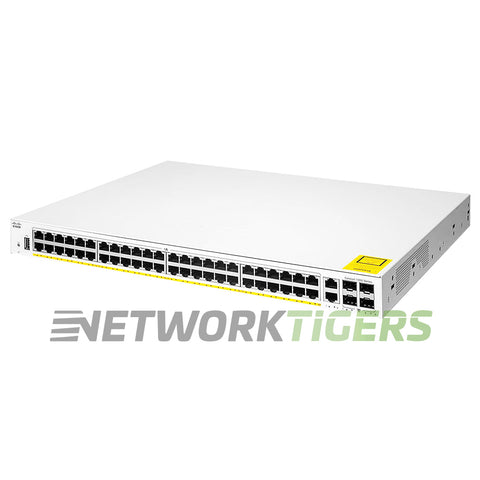

The Cisco C1000-48FP-4G-L is a 48-port fixed-configuration managed access switch from the Catalyst 1000 family, built for branch offices and small campus closets. It suits a wiring closet or rack, since Cisco builds this model with internal fans rather than as a fanless unit.
All 48 copper ports are 10/100/1000 RJ45 with PoE+, drawing on a shared 740W power budget. Plan around the total draw of the phones, cameras and access points you will power, since the budget is shared rather than reserved per port. Four 1GB SFP uplinks connect the switch to the distribution layer. Switching capacity is 104 Gbps with a forwarding rate of 77.38 Mpps.
Up to eight switches can be linked through their uplinks and managed from one IP address. Console access is through the RJ45 port or the USB Type A port with a Bluetooth dongle; Cisco dropped the mini-USB console port from VID V02 hardware. Power comes from a single fixed internal supply.
This listing is one new open box switch. If you prefer a seller refurbished unit, see the C1000-48FP-4G-L refurbished switch. For faster 10GB SFP+ uplinks, look at the C1000-48FP-4X-L switch. If you need a 370W PoE+ budget, the C1000-48P-4G-L 370W PoE+ switch is the closest match.
This Cisco C1000-48FP-4G-L switch is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 4x 1GB SFP
- Management Ports : 1x RJ45 Console, 1x USB Type A (storage and Bluetooth console), 1x USB Mini-B Console on VID V01 units only (removed from VID V02)
- Switch Version : Universal IOS image - advanced Layer 2
- Fan Module Options : None - fixed internal fans
- Power Supplies Included : 1x built-in fixed AC power supply (internal)
- PoE Budget : 740W
- Switching Capacity : 104 Gbps
- Forwarding Rate : 77.38 Mpps
- MAC Address Table Size : 16000
- DRAM and Flash : 512 MB DRAM, 256 MB Flash
- Model Number : C1000-48FP-4G-L
- Part Number : C1000-48FP-4G-L, C1000-48FP-4G-L=, C1000-48FP-4G-L-WS
- Condition : New
- One (1) New Cisco C1000-48FP-4G-L Catalyst 1000 Series 48x 1 Gigabit PoE+ RJ45 4x SFP Switch as described above
