The Cisco C1300-24XS Catalyst 1300 switch offers enterprise-grade performance with twenty 10Gb SFP+ ports and four combo uplink options.
It supports stacking within the same family, compatible models including C1300-12XT-2X, C1300-12XS, C1300-16XTS, among others. The device provides a switching capacity of 480 Gbps and delivers a forwarding rate of up to 357.14 Mpps for high-throughput data handling requirements. Its MAC address table accommodates up to 16,000 entries for sufficient scalability in growing networks. This model is designed as part of scalable networking solutions where multiple configurations are supported by stackable architecture across its product line offerings.

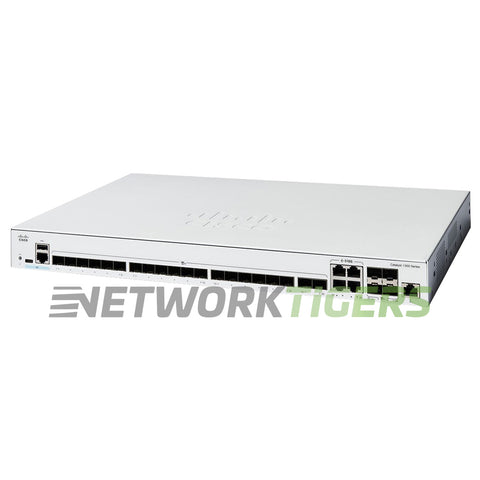

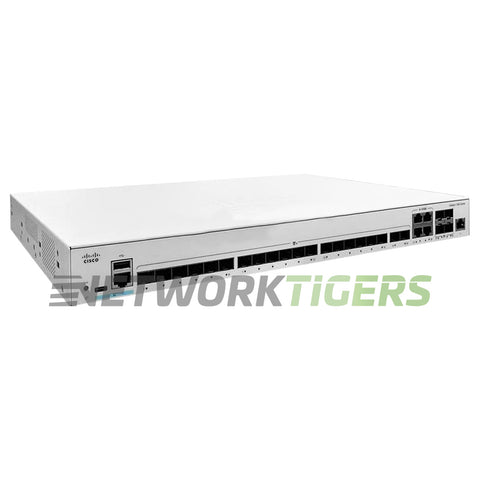

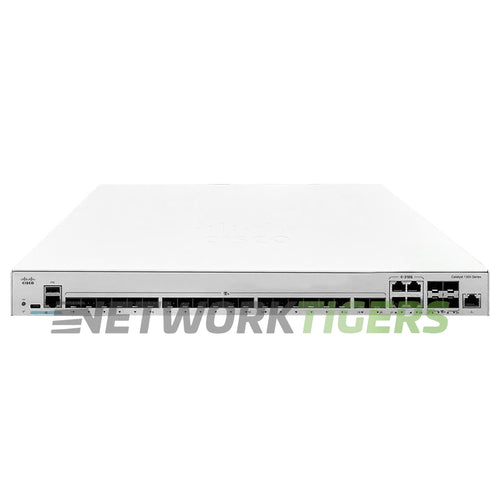

Cisco C1300-24XS Catalyst 1300 switch with 20x 10GB SFP+ ports and a further 4x 10GB Combo ports. This switch is stackable and is in the Stacking Family 2.
- Network Ports : 20x 10 Gigabit Ethernet SFP+
- Uplink Ports : 4x 10 Gigabit Ethernet Combo (SFP+/RJ-45 Copper)
- Management Ports : 1x Standard RJ-45 Console, 1x USB Type C port - Managed via the The Cisco Business Dashboard
- Stacking Ports : Uplink ports can be used for front panel stacking
- Stacking Options : Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover
- Stacking Cable Options : Cost-effective high-speed 10 Gigabit Ethernet fiber interfaces
- Stacking Family : 2 - Can be stacked with the following models - C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C1300- 24XTS
- Packet Buffer : 8 MB
- Fan Module Options : 1 (Fixed / Internal)
- Power Supplies Included : 1x Internal AC (100-240V 50-60 Hz)
- CPU : ARM dual-core at 1.4 GHz
- Switching Capacity : 480 Gbps
- Forwarding Rate : 357.14 Mpps
- MAC Address Table Size : 16,000
- DRAM and Flash : 1 GB DDR4, 512 MB Flash
- Model Number : C1300-24XS
- Part Number : C1300-24XS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C1300-24XS Catalyst 1300 20x 10GB SFP+ 4x 10GB Combo Switch as described above
- One (1) Power Cord Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
