The Cisco C9105AXI-B Catalyst 9100AX is a Wi-Fi 6 wireless access point with internal antennas, operating on both the 2.4 GHz and 5 GHz frequency bands. This AP supports several data link protocols, including IEEE standards such as 802.11b/g/n/ac Wave 2/ax (Wi-Fi6) and Bluetooth version 5.0.
With maximum PHY data rates of up to 444.4 Mbps in a dual-stream configuration, this device provides reliable wireless performance suitable for various deployment scenarios within regulatory domain B environments.
Cisco Catalyst 9105AX Access Point: This is an indoor Cisco Catalyst 9105AX Access Point with an internal antenna, Wi-Fi 6, 2x2 MIMO with two spatial streams, and B Domain.
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Managed By : Cisco wireless LAN controllers (Catalyst 9800 Series, or legacy 3504/5520/8540 and virtual controller
- Suggested Use : General indoor enterprise deployment, networks of all sizes, ceiling mount or desk placement, note the AXIT variant is a teleworker-specific bundle for remote/home deployment
- Region : B Domain (US)
- Radios : 2x, one 2.4GHz and one 5GHz, no dedicated third scanning radio on this model
- Spatial Streams per Radio : 2x streams on both 2.4GHz and 5GHz using 2x2 by 2, for 4x total combined
- Maximum Data Rate : Up to 1.488 Gbps combined (80 MHz on 5GHz and 20 MHz on 2.4GHz)
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy (BLE) 5 radio for location-based use cases like asset tracking and wayfinding
- PoE Standard : 802.3af (PoE) is sufficient for full functionality - PoE Injector not included, optional AIR-PWRINJ6= (802.3at) or AIR-PWRINJ5= (802.3af only) available separately
- Uplink Ports : 1x 10/100/1000 Base-T Ethernet RJ-45
- Other Ports : 1x Management console port, RJ-45
- Antenna Type : Integrated internal antennas, omnidirectional in azimuth, 2.4GHz at 4dBi peak gain, 5GHz at 5dBi peak gain
- Mounting Options : Ceiling mount using a specifically designed bracket, or desk placement, bracket sold separately, part number AIR-AP-BRACKET-W4=
- Mounts Included : None Included
- Model Number : C9105AXI-B
- Part Number : C9105AXI-B, C9105AXI-B=, C9105AXI-B-WS
- Condition : New

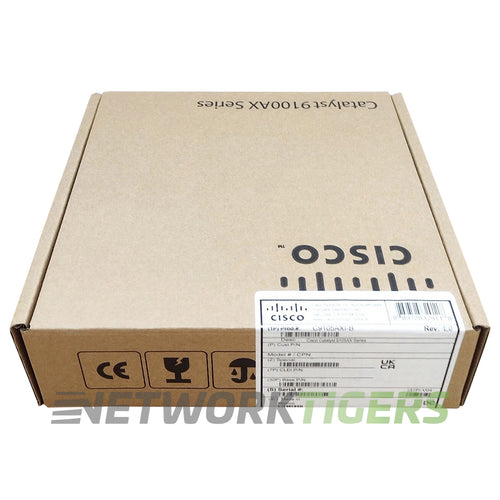

- One (1) NEW Cisco C9105AXI-B Wi-Fi 6 802.11ax US Internal Omni Directional Antennas WAP as described above
