The Cisco C9136I-B Catalyst 9100AX Wi-Fi 6E Wireless AP is equipped with internal antennas and supports frequencies of 2.4 GHz, 5 GHz, and the new 6 GHz band.
With Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE standards for various protocols including Wi-Fi b/g/n/ac/ax, this AP delivers data rates up to a maximum of PHY speeds up to 10.2 Gbps thanks in part its use of multiple-input-multiple-output (MIMO) technology on all three frequency bands available.
This high-performance access point provides reliable connectivity for modern networks requiring fast wireless connections across multiple devices simultaneously without interruption or latency issues often encountered in busy environments such as offices or schools looking make bandwidth more efficient while delivering faster signal generation throughout large spaces.

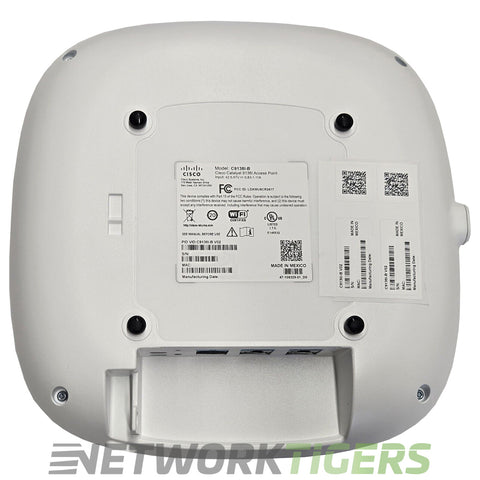

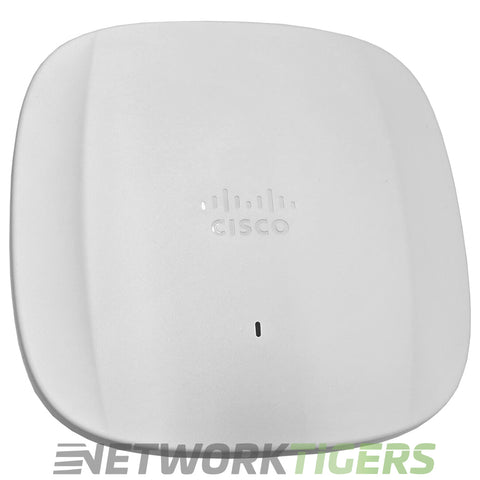

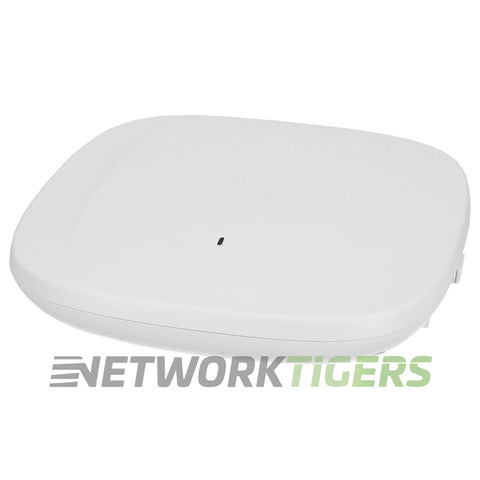

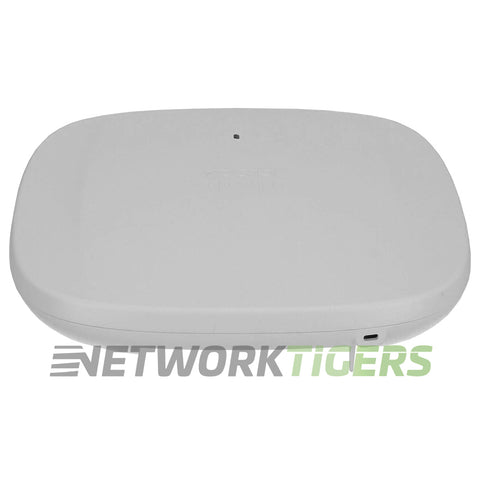

Cisco C9136I-B Catalyst 9100AX Wi-Fi 6E (802.11ax) Internal Antenna Wireless AP
- Wi-Fi Standard : IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- Managed By : Wireless LAN controllers (Catalyst 9800 Series, physical or virtual), or a Catalyst 9k switch running an embedded wireless controller in SDA mode
- Suggested Use : General indoor enterprise deployment, includes built-in environmental sensors for air quality, temperature, and humidity monitoring
- Region : US
- Radios : 3x by default, tri-radio mode with one 4x4 6GHz, one 8x8 5GHz, and one 4x4 2.4GHz, software-splittable into quad-radio mode with dual 4x4 5GHz radios instead of the single 8x8, via a future software upgrade
- Spatial Streams per Radio : 4x streams on 6GHz, 8x streams on 5GHz (or dual 4x4 in quad-radio mode), 4x streams on 2.4GHz, for 16x total combined in default tri-radio mode
- Maximum Data Rate : Up to 10.2 Gbps combined, 4x4 160MHz on 6GHz, 8x8 80MHz on 5GHz, and 4x4 20MHz on 2.4GHz
- Bluetooth / IoT Radios : Integrated Bluetooth Low Energy 5 radio for location tracking, wayfinding, and analytics
- PoE Standard : 802.3bt Cisco UPOE required for full 4x4/8x8/4x4 operation with USB enabled at 9W, 802.3at PoE+ reduces to 2x2/4x4/2x2 with a single 2.5G link and USB disabled, 802.3af PoE only supports configuration staging with all radios off
- PoE Injector : Not included, optional AIR-PWRINJ7= available separately
- Uplink Ports : 2x 100M/1000M/2.5G/5G Multigigabit Ethernet RJ-45, power-redundant with hitless failover between the two ports
- Other Ports : 1x Management console port RJ-45, 1x USB 2.0 at 9W
- Antenna Type : Integrated internal antennas, omnidirectional in azimuth, 2.4GHz at 4dBi peak gain, 5GHz at 5dBi peak gain, 6GHz at 6dBi peak gain
- Mounting Options : AIR-AP-T-RAIL-R (ceiling-rail clip) and AIR-AP-BRACKET-1= (flush ceiling) included. AIR-AP-BRACKET-2= (wall/NEMA/electrical box) or AIR-AP-T-RAIL-F optional.
- Mounts Included : None Included
- Model Number : C9136I-B
- Part Number : C9136I-B
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9136I-B Wi-Fi 6E 802.11ax Internal Omni Directional Antenna Indoor WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Wall Mount Bracket Not Included
