NEW Cisco C9200-48P-E 48x 1GB PoE+ RJ-45 1x Mod Slot Switch
New

NEW Cisco C9200-48P-E 48x 1GB PoE+ RJ-45 1x Mod Slot Switch

$ 3,449.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3761
UPC: 889728168250

Overview

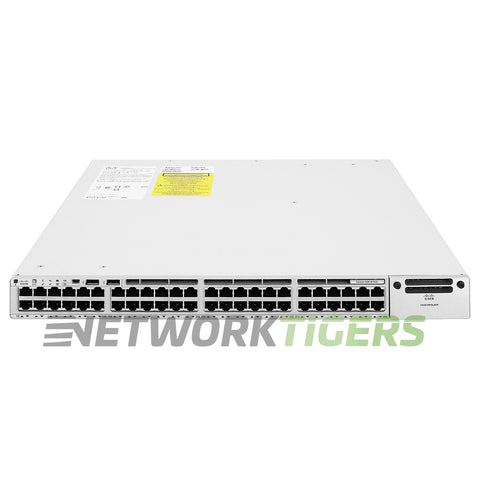

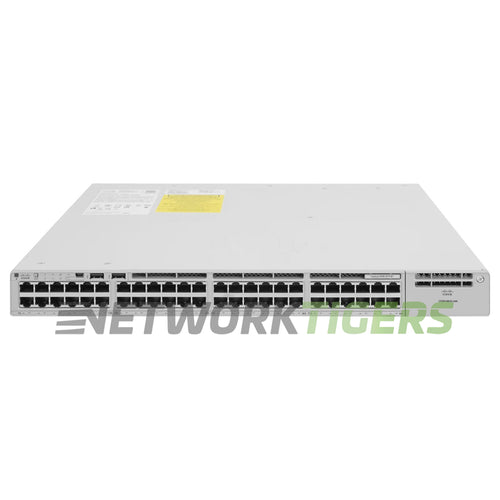

The Cisco C9200-48P-E is a powerful and reliable 48-port switch with PoE+ capability. It features 1GB RJ-45 ports and one modular slot, making it highly versatile for various networking needs.

One of the standout features of this switch is its high PoE budget – you can power multiple devices simultaneously without worrying about power constraints. With one PSU, the maximum available PoE budget is 740W; however, if you opt for dual PSUs, that capacity increases to a whopping 1440W.

The switching capacity stands at an impressive rate of up to 176 Gbps (or even higher when stacked). This ensures fast data transfer across your network infrastructure. The forwarding rate reaches approximately 261.9 Mpps (250 Mpps when stacking), ensuring seamless data transmission throughout your network.

Cisco C9200-48P-E: C9200-48P-E is the Catalyst 9200 48-port PoE+ Switch. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
  • Management Ports : 1x RJ-45 Console, 1x 1 Gigabit Management, 2x USB, 1x Mini USB
  • Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT - Ordered Separately - Stacking Bandwidth = 160 Gbps | This switch cannot be stacked with fixed C9200 models or other Catalyst switches.
  • Module Slots and Options : 1x Expansion Module Slot - Module not Included | Expansion Module Options are C9200-NM-4G (4x 1GB SFP) , C9200-NM-4X (4x 1G/10G SFP), C9200-NM-BLANK - None Included - Ordered Separately
  • Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M
  • Fan Modules AirFlow Direction : 2x C9200-FAN Fan Modules Included
  • Power Supplies Included : 1x PWR-C5-1KWAC Included - 2x Slots - 2nd Power Supply ordered separately - Options are - PWR-C5-125WAC, PWR-C5-600WAC, PWR-C5-1KWAC, PWR-C5-BLANK
  • PoE Budget : 740W (with 1x PSU), 1440W (with 2x PSU's)
  • Switching Capacity : 176 Gbps (336 Gbps with Stacking)
  • Forwarding Rate : 261.9 Mpps (250 Mpps with Stacking)
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • Model Number : C9200-48P-E
  • Part Number : C9200-48P-E, C9200-48P-E=, C9200-48P-E-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9200-48P-E 48x 1GB PoE+ RJ-45 1x Mod Slot Switch as described above
