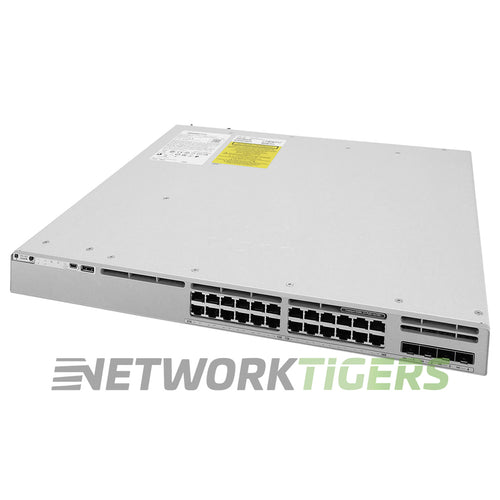

The Cisco C9200L-24P-4X-A is a Catalyst 9200L access switch with 24 10/100/1000 PoE+ ports and four 1/10G SFP+ fixed uplinks. It is the Network Advantage version, which adds advanced routing, segmentation, multicast, scale, and security capabilities to the Network Essentials feature set. Cisco DNA subscriptions are sold separately.
Cisco rates it at 128 Gbps switching capacity and 95.23 Mpps forwarding rate, or 208 Gbps and 155 Mpps in a stack. With the default PWR-C5-600WAC power supply it provides 370W of PoE+ power (up to 30W per port); a second identical supply in the open slot raises the budget to 740W. Two fixed fans handle cooling. Up to eight C9200L switches with the same license level stack over StackWise-80 at 80 Gbps, and the switch holds 16,000 MAC addresses.
This unit ships with an AC power cord, one PWR-C5-600WAC power supply, and a set of rack-mount brackets.
If the Network Essentials feature set is enough, see the Cisco C9200L-24P-4X-E. To stack it, add a C9200L-STACK-KIT. A second PWR-C5-600WAC power supply adds redundancy and PoE power.
This seller refurbished Cisco C9200L-24P-4X-A switch is tested, working, and covered by the NetworkTigers one-year warranty.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 4x 10GB SFP+
- Management Ports : 1x RJ45 Console, 1x Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise-80 (80 Gbps of Stacking bandwidth support) is possible through the C9200L-STACK-KIT (Stack kit for C9200L SKUs only - Two data stack adapters and one data stack cable)
- Stacking Options : C9200L-STACK-KIT - Ordered Separately
- Stacking Cable Options : STACK-T4-50CM (default cable with C9200L-STACK-KIT), STACK-T4-1M, STACK-T4-3M - Not included
- Stacking Bandwidth : 80 Gbps
- Switch Version : Network Advantage
- Fan Module Options : 2x fixed fans, built in (not field-replaceable)
- Power Supplies Included : 1x PWR-C5-600WAC (2 power supply bays)
- Power Supply Options : PWR-C5-125WAC, PWR-C5-600WAC, PWR-C5-1KWAC, PWR-C5-715WDC
- PoE Budget : 370W (1x PSU), 740W (2x PSU's)
- Switching Capacity : 128 Gbps (208 Gbps w/ Stacking)
- Forwarding Rate : 95.23 Mpps
- MAC Address Table Size : 16,000
- VLAN ID's : 4096
- DRAM and Flash : 2 GB DRAM, 4 GB Flash
- Model Number : C9200L-24P-4X-A
- Part Number : C9200L-24P-4X-A, C9200L-24P-4X-A=, C9200L-24P-4X-A-RF
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9200L-24P-4X-A Catalyst 9200L 24x 1GB PoE+ RJ45 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
