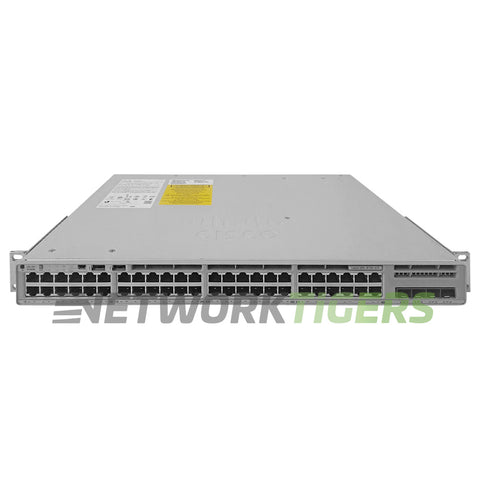

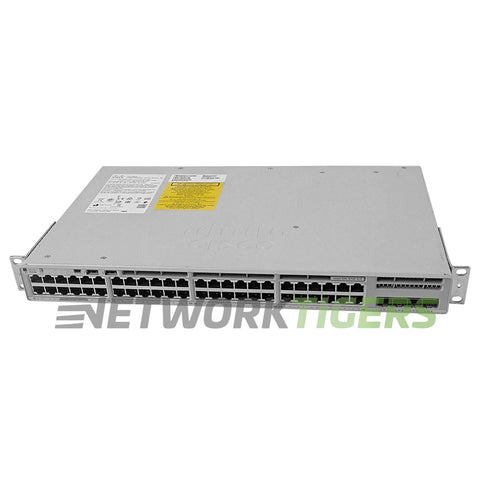

The Cisco C9200L-48P-4G-E is a Catalyst 9200L access switch with 48 10/100/1000 PoE+ ports and four 1G SFP fixed uplinks. It is the Network Essentials version, which covers foundational Layer 2 and Layer 3 switching, automation, visibility, and security. Cisco DNA subscriptions are sold separately.
Cisco rates it at 104 Gbps switching capacity and 77.38 Mpps forwarding rate, or 184 Gbps and 137 Mpps in a stack. With the default PWR-C5-1KWAC power supply it provides 740W of PoE+ power (up to 30W per port); a second identical supply in the open slot raises the budget to 1440W. Two fixed fans handle cooling. Up to eight C9200L switches with the same license level stack over StackWise-80 at 80 Gbps, and the switch holds 16,000 MAC addresses.

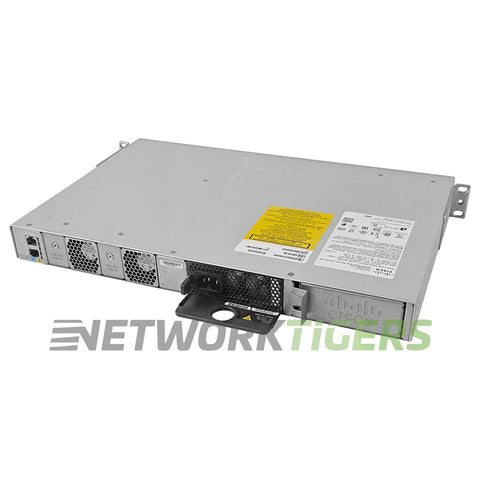

This unit ships with the default PWR-C5-1KWAC power supply installed, a PWR-C5-BLANK cover in the second power supply slot, an AC power cord, and a set of rack-mount brackets.
For the Network Advantage feature set, see the Cisco C9200L-48P-4G-A. For 10G uplinks, the Cisco C9200L-48P-4X-E is the matching model. To stack it, add a C9200L-STACK-KIT.
This Cisco C9200L-48P-4G-E switch is new open box and covered by the NetworkTigers one-year warranty.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 4x 1GB SFP
- Management Ports : 1x RJ45 Console, 1x Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise 80 possible through the use of C9200L-STACK-KIT - ordered separately.
- Stacking Options : Stacking Bandwidth up to 80 Gbps - Mixed stacking is not supported. You cannot stack fixed (C9200L SKUs) with modular (C9200 SKUs) models, or other Catalyst switches
- Stacking Cable Options : STACK-T4-50CM, STACK-T4-1M, STACK-T4-3M
- Switch Version : Network Essentials
- Fan Module Options : 2x fixed fans, built in (not field-replaceable)
- Power Supplies Included : 1x PWR-C5-1KWAC (2 power supply bays)
- Power Supply Options : PWR-C5-125WAC, PWR-C5-600WAC, PWR-C5-1KWAC, PWR-C5-715WDC
- PoE Budget : 740W (w/ Single PSU), 1440W (w/ 2 PSU's)
- Switching Capacity : 104 Gbps
- Forwarding Rate : 77.38 Mpps
- MAC Address Table Size : 16,000
- VLAN ID's : 4096
- DRAM and Flash : 2 GB DRAM, 4 GB Flash
- Model Number : C9200L-48P-4G-E
- Part Number : C9200L-48P-4G-E, C9200L-48P-4G-E=, C9200L-48P-4G-E-WS
- Condition : New
- One (1) NEW Cisco C9200L-48P-4G-E 48x 1GB PoE+ RJ45 4x 1GB SFP Switch as described above
