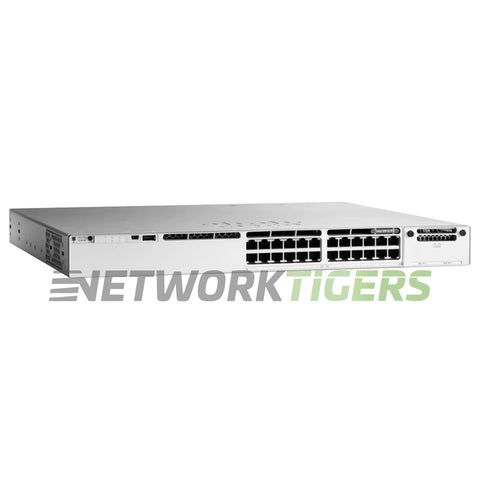

Supplied in open box, the NEW Cisco Catalyst C9300-24T-E (Network Essentials version) gives small offices, schools, and retail sites 24 Gigabit RJ45 data ports with a module slot for uplinks and stacking for up to eight switches.
- Raise uplink speed in place: Start on 1G with a C9300-NM-4G, or move to C9300-NM-2Q (2x 40G), C9300-NM-2Y (2x 25G/10G/1G), or C9300-NM-8X (8x 10G/1G) when the core is ready. C9300-NM-4M adds 4x Multigigabit.
- Cable lengths for any rack: Eight Catalyst 9300 switches can stack over 480 Gbps cables in 0.5m, 1m, or 3m lengths. Catalyst 9300X models can join, but fixed-uplink 9300L and Catalyst 3850/3650 switches cannot.
- Memory and flash on board: Each switch has 8 GB of memory and 16 GB of flash, and its USB 3.0 slot takes an SSD up to 240 GB.
- No PoE, known peak draw: No PoE is offered. Fitted with a C9300-NM-8X, the switch draws up to 106.1W at full-port traffic and 85.0W with no link at 115V, per Cisco's published measurements.
Compare: Need more ports? The NEW C9300-48T-E has 48 copper ports. Want fixed 10G uplinks without a module? The NEW C9300L-24T-4X-E has four 10G/1G SFP+ uplinks.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 24x 1 Gigabit Ethernet RJ45
- Management Ports : 1x RJ45, 1x USB 2.0 (USB 2.0 slot to load system images and set configurations)
- Stacking Ports : 2x StackWise 480 Ports (480 Gbps Stacking Bandwidth), 2x StackPower Ports
- Stack Members : Up to eight switches can be connected in the stack | Supported stack members = Other C9300 SKUs with same license level - C9300 higher scale SKUs only stack with other like higher scale models
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M, CAB-SPWR-30CM, CAB-SPWR-150CM - Cables sold separately
- Module Slots : 1x Expansion Module Slot - Modules are not included
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M, C9300-NM-2Y - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Field Replaceable Fan Modules Included
- Power Supplies Included : 1x PWR-C1-350WAC Power Supply included - 2x Slots
- Power Supply Options : PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC
- Switching Capacity : 208 Gbps (688 Gbps with Stacking)
- Forwarding Rate : 154.76 Mpps (511.90 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-24T-E
- Part Number : C9300-24T-E, C9300-24T-E=, C9300-24T-E-WS
- Condition : New
- One (1) New Cisco C9300-24T-E Catalyst 9300 Series 24x 1 Gigabit RJ45 1x Expansion Module Slot Switch as described above
