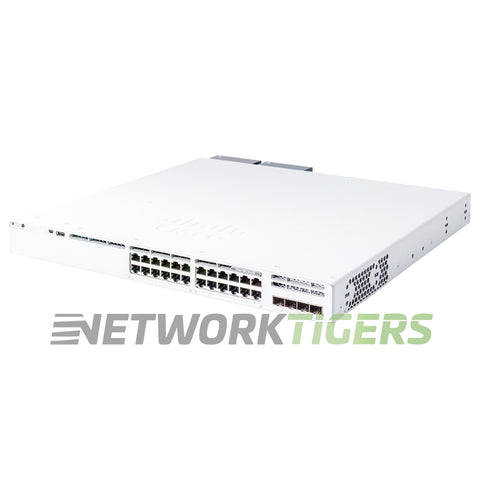

Supplied in open box, the NEW Cisco Catalyst C9300L-24T-4X-E (Network Essentials version) gives small offices and schools a 24-port Gigabit data switch with four fixed 10G/1G uplinks and optional stacking for up to eight switches.
- SFP+ uplinks with LC fiber: The four built-in uplinks run at 10G/1G, and SFP+ transceivers use LC connectors for single-mode or multimode fiber.
- Stack cable lengths: The optional kit has two adapters and a 0.5m cable, and 1m and 3m cables are also offered.
- Memory and a USB SSD slot: The switch has 8 GB of memory and 16 GB of flash, and a USB 3.0 slot takes an SSD up to 240 GB.
- Weight and rated life: Weight is 14.93 lb (6.78 kg) and MTBF is 387,700 hours. No PoE is offered.
Compare: Need PoE+ for phones? The NEW C9300L-24P-4X-E adds 505W of PoE. Need a module slot? The NEW C9300-24T-E takes Catalyst 9300 network modules.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
This unit is NEW in open box and sold with warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 24x Gigabit Ethernet RJ45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
- Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-350WAC-P Power Supply Included - 2nd Power Supply ordered separately.
- Switching Capacity : 128 Gbps (Switching Capacity with Stacking - 448 Gbps)
- Forwarding Rate : 95.23 Mpps (Forwarding Rate with Stacking - 333.33 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-24T-4X-E
- Part Number : C9300L-24T-4X-E, C9300L-24T-4X-E=, C9300L-24T-4X-E-WS
- Condition : New
- One (1) NEW Cisco C9300L-24T-4X-E 24x 1GB RJ45 4x 10GB SFP+ Switch as described above
