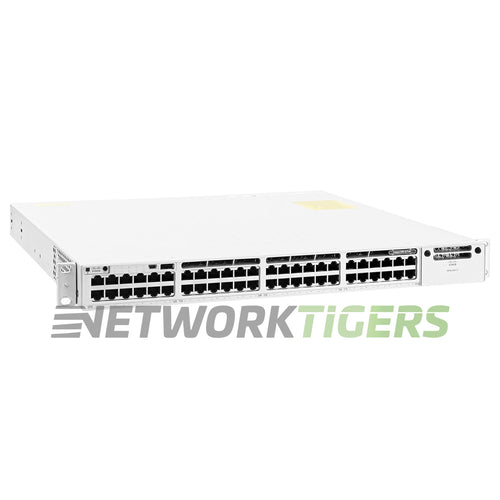

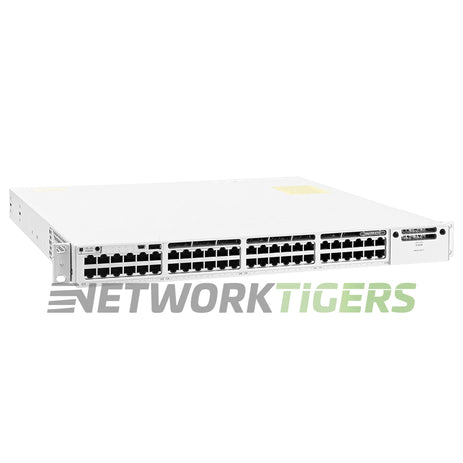

The Cisco C9300-48P-A Catalyst 9300 is a high-performance switch that offers reliable and efficient network connectivity. Its 48x 1GB PoE+ RJ-45 ports provide power over Ethernet for your devices. It also has one module slot where you can add additional modules as needed.
This switch comes with different power supply options - the default PSU offers a budget of 787W. Adding secondary PSUs increases this to 1152W or up to 1440W of available power. The switching capacity of the C9300-48P-A is rated at 256 Gbps (which goes up to 736 Gbps when stacked), ensuring smooth data transmission across your network.
Regarding forwarding rate, this model reaches 190.48 Mpps by itself but achieves 547.62 Mbps when combined in stacking configuration. For MAC address storage, the device supports up to 32,000 entries. Featuring these specifications makes the Cisco C9300-48P-A an ideal choice for businesses looking for robust performance and flexible scaling capabilities within their networks.
Cisco C9300-48P-A: Catalyst 9300 48x 1Gb RJ45 PoE+ ports.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- Product Family : Catalyst 9300 Series
- Management Ports : 1x RJ-45 Console, 1x RJ-45 Management, 1x USB Type B, 1x USB Type A
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x MultiGB RJ-45)
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans Included
- Power Supplies Included : 1x PWR-C1-715WAC (715W AC) included - 2x Slots
- Power Supply Options : PWR-C1-715WAC or PWR-C1-1100WAC or PWR-C1-350WAC
- PoE Budget : 437W with default PSU - 787W (with 350W Secondary PS), 1152W (with 715W Secondary PS), 1440W (with 1100W Secondary PS)
- Switching Capacity : 256 Gbps (736 Gbps with Stacking)
- Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-48P-A
- Part Number : C9300-48P-A, C9300-48P-A=, C9300-48P-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300-48P-A Catalyst 9300 48x 1GB PoE+ RJ-45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
