NEW Cisco C9300-48U-A 48x 1GB UPoE RJ-45 1x Module Slot Switch
New

NEW Cisco C9300-48U-A 48x 1GB UPoE RJ-45 1x Module Slot Switch

$ 1,949.99
$ 1,709.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2494
UPC: 889728051606

Overview

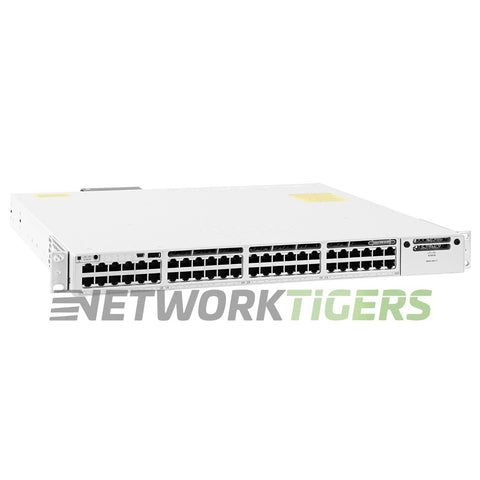

The Cisco C9300-48U-A switch offers high-performance networking capabilities with its 48x 1GB UPoE RJ-45 ports and modular design. It has a PoE budget of up to 822W (default PSU), which can be expanded depending on the power supply unit, allowing for flexible deployment options.

With a switching capacity of 256 Gbps (736 Gbps with stacking), this switch provides fast and reliable data transfer rates. Its forwarding rate is impressive at 190.48 Mpps (547.62 Mpps with stacking), ensuring efficient network performance.

This Cisco switch also features a MAC address table size of up to 32,000 entries, accommodating large networks without having an effect on speed or functionality.

Cisco C9300-48U-A: Catalyst 9300 48x 1Gb RJ45 UPOE Ports.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet RJ-45 UPoE
  • Management Ports : 1x RS-232 RJ-45 Console, 1x Gigabit Ethernet Management, 1x USB 2.0 for configuration
  • Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports - Cables sold separately - Cable Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power)
  • Module Slots and Options : 1x Expansion Module Slot - None Included - Sold separately
  • Expansion Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q
  • Fan Modules AirFlow Direction : 3x FAN-T2 Field Replaceable Fans Included
  • Power Supplies Included : 1x PWR-C1-1100WAC Included - 2x PSU Slots - Options for 2nd PSU are - PWR-C1-350WAC, PWR-C1-715WAC or PWR-C1-1100WAC
  • PoE Budget : 822W (w/ Default PSU), 1172W (w/ 350W 2nd PSU), 1537W (w/ 715W 2nd PSU), 1800W (w/ 1100W 2nd PSU)
  • Switching Capacity : 256 Gbps (736 Gbps with Stacking)
  • Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • DRAM : 8GB
  • Model Number : C9300-48U-A
  • Part Number : C9300-48U-A, C9300-48U-A=, C9300-48U-A-WS
  • Condition : New


Included

  • One (1) New Cisco C9300-48U-A Catalyst 9300 Series 48x 1 Gigabit UPoE RJ-45 1x Expansion Module Slot Switch as described above
